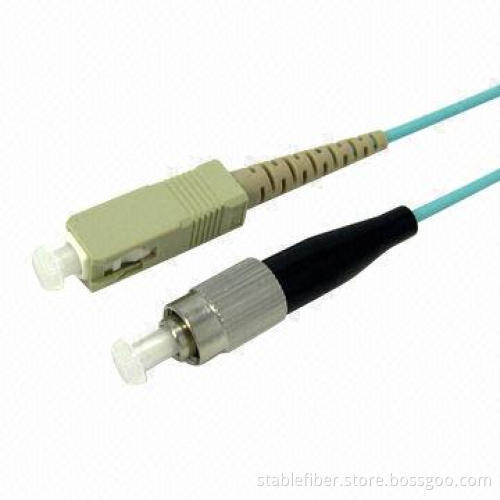

MM Duplex/Simplex SC-FC OM4 Patch Cord with Ultra Low Back Reflection and Low Insertion Loss
  • MM Duplex/Simplex SC-FC OM4 Patch Cord with Ultra Low Back Reflection and Low Insertion Loss
MM Duplex/Simplex SC-FC OM4 Patch Cord with Ultra Low Back Reflection and Low Insertion Loss

MM Duplex/Simplex SC-FC OM4 Patch Cord with Ultra Low Back Reflection and Low Insertion Loss

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Used on patch panel or for connection between outlets andterminal equipment
  • Stable offer customized products with cables PVC, LSZH, OFNPjacket in required colors and lengths
  • Fiber has G652D, G655, G657A, OM2, OM3, OM4, single fiber,zipcord fiber, bundle type and ribbon type for choice
  • Quality of connectors and fibers are mainly determined byinsertion loss and return loss
  • Applications:
    • High bit rate data transmission
    • Telecommunications
    • Testing instruments
    • Active device terminations
    • LAN/WAN
    • FTTX
  • Features:
    • SM and MM available
    • Standard and custom configurations
    • Meets Telecordia-GR-326-CORE specifications
    • Low insertion loss
    • Ultra low back reflection
    • For 3.0, 2.4, 2.0mm jacket or 900μm buffer
  • Technical data:
    • Performance and specifications:
      • Fiber type: SM and MM
      • Normal fiber outer diameter: 125 ±0.2μm
      • Connector type: SC, FC, ST, E-2000, LC, MU and MTRJ
      • Insertion loss:
        • Typical: 0.2 or 0.4dB
        • Maximum: 0.3 or 0.5dB
      • Return loss (typical):
        • PC: 50dB
        • UPC: 55dB
        • APC: 65dB
      • Mating durability (500°C): 0.2dB
      • Temperature stability:0.3dB
  • Temperature:
    • Operating: -40 to 85°C
    • Storage: -40 to 85°C
  • High bit rate data transmission
  • Telecommunications
  • Testing instruments
  • Active device terminations
  • LAN/WAN
  • FTTX
  • SM and MM available
  • Standard and custom configurations
  • Meets Telecordia-GR-326-CORE specifications
  • Low insertion loss
  • Ultra low back reflection
  • For 3.0, 2.4, 2.0mm jacket or 900μm buffer
  • Performance and specifications:
    • Fiber type: SM and MM
    • Normal fiber outer diameter: 125 ±0.2μm
    • Connector type: SC, FC, ST, E-2000, LC, MU and MTRJ
    • Insertion loss:
      • Typical: 0.2 or 0.4dB
      • Maximum: 0.3 or 0.5dB
    • Return loss (typical):
      • PC: 50dB
      • UPC: 55dB
      • APC: 65dB
    • Mating durability (500°C): 0.2dB
    • Temperature stability:0.3dB
  • Fiber type: SM and MM
  • Normal fiber outer diameter: 125 ±0.2μm
  • Connector type: SC, FC, ST, E-2000, LC, MU and MTRJ
  • Insertion loss:
    • Typical: 0.2 or 0.4dB
    • Maximum: 0.3 or 0.5dB
  • Return loss (typical):
    • PC: 50dB
    • UPC: 55dB
    • APC: 65dB
  • Mating durability (500°C): 0.2dB
  • Temperature stability:0.3dB
  • Typical: 0.2 or 0.4dB
  • Maximum: 0.3 or 0.5dB
  • PC: 50dB
  • UPC: 55dB
  • APC: 65dB
  • Operating: -40 to 85°C
  • Storage: -40 to 85°C
