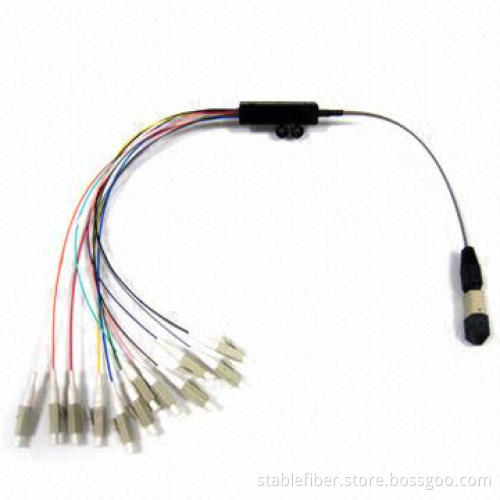

1 x 12 Fiber-optic Patch Cord, Used for Telecommunications and Active Device Terminations

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Bare fiber ribbon and ruggedized type

Available for SM (angled) and MM (flat) performance

Push-on/pull-off latching connector, easy connection or disconnection

Fiber type: single (angled) and multi-mode (flat)

Insertion loss: ≤0.35 and 0.75dB

Return loss: ≥60 and 35dB

Durability: 0.3 and 0.2dB (500 cycles)

Operating temperature: -40 to 80 and -40 to 80°C

MPO/MTP connector manufactured specifically for multi-fiber ribbon cable

Connection integrity provided by spring action side latch housing and alignment achieved with high precision guide pins

Housing colored-coded to differentiate single- and multi-mode

Removable housing allow for quick change of pin clamps, ferrule clearing or connector re-polishing

Standards: IEC 61, 754-7 and TIA/EIA 604-5

Applications:

Telecommunications

Testing instruments

Active device terminations

LAN/WAN

FTTX
