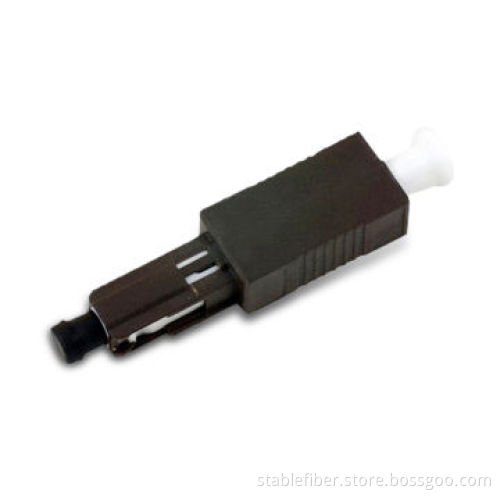

SC/FC/ST/LC/MU Type Fiber Optic Attenuator with Low Polarization Related Loss

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Their attenuation level ranges from 1 to 30dB

Can work at 1,240 to 1,620Nm, including typical SMF 1,310Nm and1,550Nm

Applications:

Features:

Specification:

Passive optical networks

Over-powered fiber optic systems

Optical power receivers protection

Multi-wave length systems balancing

Loop tests and measurements

One-half size of current industry standards

Increases panel density provides duplex connection in 50% lessspace

Duplex fits RJ-45 footprint

Available in SM, MM versions with super, ultra and angle APCpolishing

User-friendly audible latch to indicate proper mating

Simplex and duplex version available

Operating wavelength 1,310/1,550, ±10Nm

Tolerance for 1 to 5dB attenuation: ±0.5dB

Tolerance for 6 to 30dB attenuation: ±10%

UPC return loss: e50dB

APC return loss: e60dB

Operating temperature: -40 to 75°C

Polarization dependent loss: 0.1dB

Mating durability: 1,000 cycles
