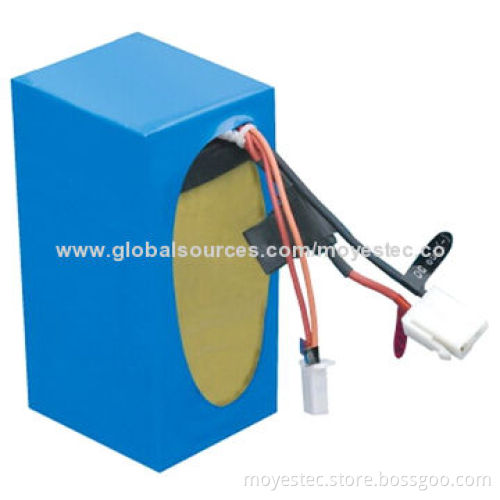

14.8V Li-ion polymer battery 2,200mAh, high capacity for medical equipment and electrocardiograph

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, PayPal, Western Union or L/C

Product Description

Type: Li-ion 4S1P

Voltage: 14.8V

Charger current: 0.3A

Nominal capacity: 2,200mAh

Size: 130*11*56mm

Max. charge current: ≤2A

Continuous discharge current: ≤5A

Peak discharge current: ≤15A

Constant discharge current: 0.2C (standard)/1C (maximum)

Over-discharge protection voltages: 6.0±0.05V

Over charge protection voltages: 8.4±0.05V

AC Impedance new cell max.: ≤100mΩ

Charge mode: CC/CV

Working temperatures: 0 to 45°C (charge)/-20 to 60°C (discharge)

Cycle lifespan: 500 times

Protection functions: overcharge, over-discharge, overload and short-circuit

Application: medical instruments and equipment monitoring instrument, electrocardiogram instrument

Regulated marks: CE, RoHS and FCC
