18*1W, High Quality/Pressure, Wall Washer with CE/ISO9001

18*1W, High Quality/Pressure, Wall Washer with CE/ISO9001

Get Latest Price

Payment Type:: T/T, L/C or PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C or PayPal

Product Description

Size: L600 * W50 * H40mm

Beam angle: 10 × 45, 15/30/45/60/90°

CCT: D (6,500K), N (4,000K), W (3,000K -R/G/B

CRI: 70-80Ra

Luminous flux range: 100-120Lm/LED

Waterproof rate: IP66

Weight: 1.4kg

QTY/ctn: 18pcs

Specification:

12*1W DM x 512 LED high power wall washer; AC90-260V input

Usage safety and attention:

Operator who is using this product must be free from intense light which is harmful to human eyes, avoid glaring at the product closely when the product is turned on
Before using, please make sure that the voltage and frequency of power supply is right, in order to avoid damage to the product
Before using this product, please read the instruction manual for this product

Components of the product:

The main part of the product is pressed with good quality of stainless steel
Sealed up with the toughened glass and silasticto and internal silicone potting with good capacity of waterproof
Solid-state high-power LEDs, 3-watt
PMMA (optical grade acrylic plastic) lens
Built-in constant current driver ensures the lamp works steadily
Core rubber cable of power supply is 1.5 meters
3-core silicone cable for signal input is 0.25 meter with waterproof male connector and the other cable for signal output is female connector

General features:

The working voltage is AC90-260v, 50/60Hz
The working temperature is -40~50°C
Low luminous decay, 1% per 1,000 hours
The external control mode is DMX512 with color changes synchronously
Long life, working hours at least up to 30,000 hours
IP65
The product is required to have the voltage of between A90-260V, 50/60Hz
This product is spot lamp based on high-power LEDs

Access and use of the product:

The product is required to have the voltage of AC 110V/220V, 50/60Hz
Please confirm that it is right before using it
Put your screws into the base hole of the lamp and fix it with the fixture well
Connect the brown and blue wires of power supply cable to source of AC 110V/220V, 50/60Hz after shutting down the power supply

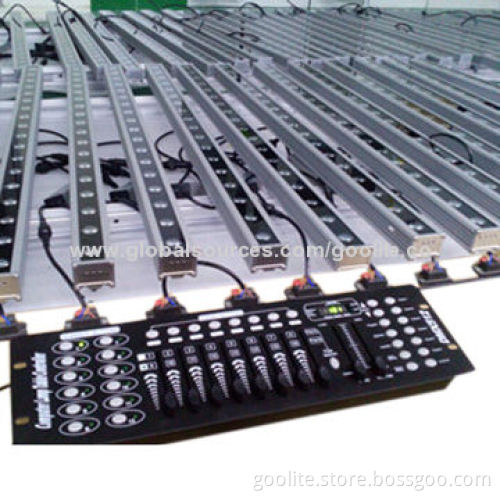

Connect the signal cable with male connector to remote DMX512 controller’s signal output cable with female cable or to signal output cable of the previous lamp

12*1W DM x 512 LED high power wall washer; AC90-260V input

Operator who is using this product must be free from intense light which is harmful to human eyes, avoid glaring at the product closely when the product is turned on

Before using, please make sure that the voltage and frequency of power supply is right, in order to avoid damage to the product

Before using this product, please read the instruction manual for this product

The main part of the product is pressed with good quality of stainless steel

Sealed up with the toughened glass and silasticto and internal silicone potting with good capacity of waterproof

Solid-state high-power LEDs, 3-watt

PMMA (optical grade acrylic plastic) lens

Built-in constant current driver ensures the lamp works steadily

Core rubber cable of power supply is 1.5 meters

3-core silicone cable for signal input is 0.25 meter with waterproof male connector and the other cable for signal output is female connector

The working voltage is AC90-260v, 50/60Hz

The working temperature is -40~50°C

Low luminous decay, 1% per 1,000 hours

The external control mode is DMX512 with color changes synchronously

Long life, working hours at least up to 30,000 hours

IP65

The product is required to have the voltage of between A90-260V, 50/60Hz

This product is spot lamp based on high-power LEDs

The product is required to have the voltage of AC 110V/220V, 50/60Hz

Please confirm that it is right before using it

Put your screws into the base hole of the lamp and fix it with the fixture well

Connect the brown and blue wires of power supply cable to source of AC 110V/220V, 50/60Hz after shutting down the power supply

Connect the signal cable with male connector to remote DMX512 controller’s signal output cable with female cable or to signal output cable of the previous lamp
