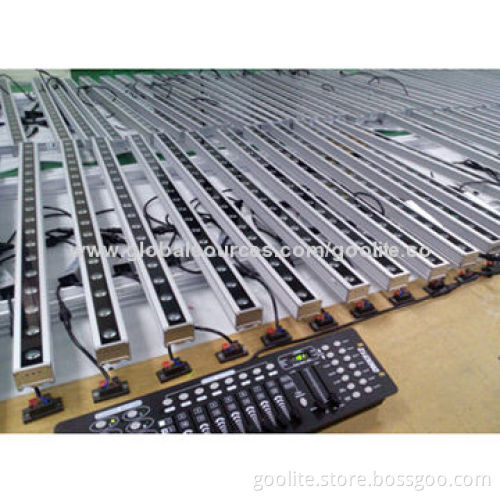

DC 12~24V, 36W, IP65 RGB, LED wall washer with 3 years warranty

DC 12~24V, 36W, IP65 RGB, LED wall washer with 3 years warranty

Get Latest Price

Payment Type:: T/T, L/C or PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C or PayPal

Product Description

Size: L1,000*W50*H40mm

Beam angles: 10×45, 15/30/45/60/90°

CCT range: D (6,500), N (4,000), W (3,000）-R/G/B

CRI range: 70-80Ra

Luminous flux range: 100-120Lm/LED

Waterproof rate: IP66

Weight: 2.1kg

Qty/ctn: 9pcs

Specifications:

12*1W DMX512 LED high power wall washer, AC 90-260V input
Use safety and attention
Operator who using this product must be clear intense light is harm to human eyes, avoid to glare at the product closely when the product is turn on
Before using, please make sure that the voltage and frequency of power supply is right, in order to avoid damage to the product
Before using this product, please read the instruction manual for this product
Components of the product
The main part of the product pressed with good quality of stainless steel
Sealed up with the toughened glass and silasticto and internal silicone potting with good capacity of waterproof
Solid-state high-power LEDs, 3-watt
PMMA(optical grade acrylic plastic) lens
Built-in constant current driver ensures the lamp work steadily
core rubber cable of power supply is 1.5 meter
3-core silicone cable for signal input is 0.25 meter with waterproof male connector, and the other cable for signal output is female connector

General features:

The working voltage range from AC 90-260V, 50/60Hz
The working temperatures is -40~50°
Low luminous decay, 1% per 1,000 hours
The external control mode is DMX512 with color changes synchronously
Long life, working hours at least up to 30,000 hours
IP65
The product is required to the voltage, AC 90-260V, 50/60Hz
This product is spot lamp based on high-power LED
Access and use of the product:
The product is required to the voltage, AC 110V/220V, 50/60Hz
Please confirm that it is right before use it
Put your screws into the base hole of the lamp and fix it with the fixture well
Connect the brown and blue wires of power supply cable to source of AC 110/220V, 50/60Hz, after shut down the power supply
Connect the signal cable with male connector to remote DMX512 controller’s signal output cable with female cable or to signal output cable of the previous lamp

12*1W DMX512 LED high power wall washer, AC 90-260V input

Use safety and attention

Operator who using this product must be clear intense light is harm to human eyes, avoid to glare at the product closely when the product is turn on

Before using, please make sure that the voltage and frequency of power supply is right, in order to avoid damage to the product

Before using this product, please read the instruction manual for this product

Components of the product

The main part of the product pressed with good quality of stainless steel

Sealed up with the toughened glass and silasticto and internal silicone potting with good capacity of waterproof

Solid-state high-power LEDs, 3-watt

PMMA(optical grade acrylic plastic) lens

Built-in constant current driver ensures the lamp work steadily

core rubber cable of power supply is 1.5 meter

3-core silicone cable for signal input is 0.25 meter with waterproof male connector, and the other cable for signal output is female connector

The working voltage range from AC 90-260V, 50/60Hz

The working temperatures is -40~50°

Low luminous decay, 1% per 1,000 hours

The external control mode is DMX512 with color changes synchronously

Long life, working hours at least up to 30,000 hours

IP65

The product is required to the voltage, AC 90-260V, 50/60Hz

This product is spot lamp based on high-power LED

Access and use of the product:

The product is required to the voltage, AC 110V/220V, 50/60Hz

Please confirm that it is right before use it

Put your screws into the base hole of the lamp and fix it with the fixture well

Connect the brown and blue wires of power supply cable to source of AC 110/220V, 50/60Hz, after shut down the power supply

Connect the signal cable with male connector to remote DMX512 controller’s signal output cable with female cable or to signal output cable of the previous lamp
