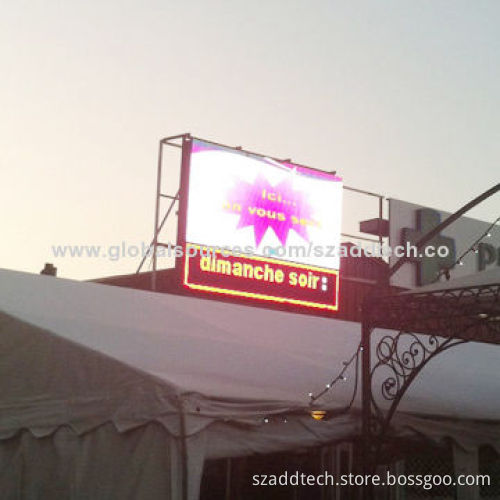

P16mm RGB Full Color LED Video Screen for French Restaurant Advertising Use, Can Install in Roofs
  • P16mm RGB Full Color LED Video Screen for French Restaurant Advertising Use, Can Install in Roofs
P16mm RGB Full Color LED Video Screen for French Restaurant Advertising Use, Can Install in Roofs

P16mm RGB Full Color LED Video Screen for French Restaurant Advertising Use, Can Install in Roofs

Get Latest Price
Payment Type:
T/T or Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or Western Union
Product Description
Product Description
  • LED lamps: DIP346, oval shape
  • Wavelength:
    • Red LED: 620 to 630nm
    • Green LED: 520 to 535nm
    • Blue LED: 465 to 475nm
  • LED module specifications:
    • Resolution: 16 x 8 dots
    • Pixel pitch: 16mm
    • Pixel configuration: 1R, 1G and 1B
    • Size: 256 x 128mm
  • LED cabinet specifications (standard cabinet):
    • Cabinet size: (W x H x D) 1024 x 1024 x 175mm
    • Resolution: 64 x 64 dots
    • Module quantity: 32 pieces
    • Frame material: black powder-coated steel
    • Weight: 63kg
  • Screen parameters:
    • Resolution: 3906 dots/m2
    • Brightness: 9500nits
    • Brightness adjustment: manually or automatically
    • Driving method: constant current/static
    • Viewing angle:
      • Horizontal: 120°
      • Vertical: 60°
    • Optimum viewing distance: 15 to 300m
    • Refreshing frequency: 1500Hz (adjustable by software)
    • Input voltage: 110 or 220V AC at 50 or 60Hz
    • Power consumption:
      • Maximum: 1500W/m2
      • Average: 500 to 1000W/m2
    • Defect rate: ≤0.00001
    • MTBF: ≥5000 hours
    • Lifespan: ≥100,000 hours
    • Protection grade: IP6
  • Red LED: 620 to 630nm
  • Green LED: 520 to 535nm
  • Blue LED: 465 to 475nm
  • Resolution: 16 x 8 dots
  • Pixel pitch: 16mm
  • Pixel configuration: 1R, 1G and 1B
  • Size: 256 x 128mm
  • Cabinet size: (W x H x D) 1024 x 1024 x 175mm
  • Resolution: 64 x 64 dots
  • Module quantity: 32 pieces
  • Frame material: black powder-coated steel
  • Weight: 63kg
  • Resolution: 3906 dots/m2
  • Brightness: 9500nits
  • Brightness adjustment: manually or automatically
  • Driving method: constant current/static
  • Viewing angle:
    • Horizontal: 120°
    • Vertical: 60°
  • Optimum viewing distance: 15 to 300m
  • Refreshing frequency: 1500Hz (adjustable by software)
  • Input voltage: 110 or 220V AC at 50 or 60Hz
  • Power consumption:
    • Maximum: 1500W/m2
    • Average: 500 to 1000W/m2
  • Defect rate: ≤0.00001
  • MTBF: ≥5000 hours
  • Lifespan: ≥100,000 hours
  • Protection grade: IP6
  • Horizontal: 120°
  • Vertical: 60°
  • Maximum: 1500W/m2
  • Average: 500 to 1000W/m2
