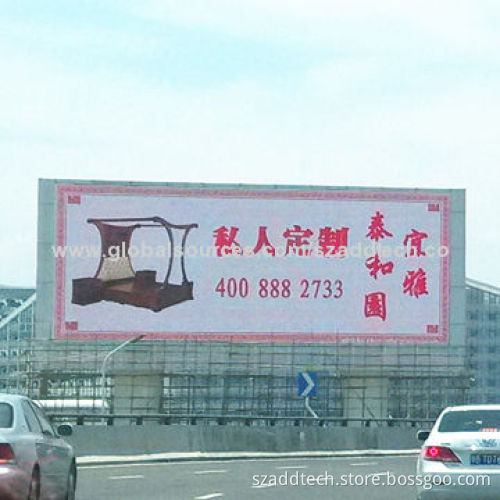

Outdoor RGB Full Color LED Video Screen, Can Show Text Messages, Graphics and Videos
  • Outdoor RGB Full Color LED Video Screen, Can Show Text Messages, Graphics and Videos
  • Outdoor RGB Full Color LED Video Screen, Can Show Text Messages, Graphics and Videos
Outdoor RGB Full Color LED Video Screen, Can Show Text Messages, Graphics and Videos
Outdoor RGB Full Color LED Video Screen, Can Show Text Messages, Graphics and Videos

Outdoor RGB Full Color LED Video Screen, Can Show Text Messages, Graphics and Videos

Get Latest Price
Payment Type:
T/T or Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or Western Union
Product Description
Product Description
  • Technical specifications:
    • LED lamp parameters:
      • Wavelength:
        • Red LEDs: 620 to 630nm
        • Green LEDs: 520 to 535nm
        • Blue LEDs: 465 to 475nm
    • LED module specifications:
      • Pixel pitch: 10mm
      • Pixel configuration: 1R1G1B
      • Module resolution: 16 dots X 16 dots
      • Module size: 160 x 160mm
    • LED cabinet specifications (standard cabinet):
      • Cabinet size (W x H): 960 x 960mm
      • Cabinet resolution: 96 x 96 pixel dots
      • Module quantity: 36 pieces
      • Cabinet frame material: black powder-coated steel
      • Cabinet weight: 55kg
  • Screen parameters:
    • Screen resolution: 10,000 dots/m²
    • Screen brightness: 8,000 nits
    • Brightness adjustment: manually or automatically
    • Driving method constant current: 1/4A
    • Viewing angle:
      • Horizontal: 110°
      • Vertical: 60°
    • Optimum viewing distance: 5 to 200m
    • Refreshing frequency: 1,500Hz (adjustable by software)
    • Input voltage: 220/50 or 110V AC/60Hz
    • Power consumption:
      • Maximum: 1,200W/m²
      • Average: 400 to 800W/m²
    • Defects rate: ≤0.00001
    • MTBF: >5,000 hours
    • Lifespan: ≥100,000 hours
    • Protection grade: IP65
  • LED lamp parameters:
    • Wavelength:
      • Red LEDs: 620 to 630nm
      • Green LEDs: 520 to 535nm
      • Blue LEDs: 465 to 475nm
  • LED module specifications:
    • Pixel pitch: 10mm
    • Pixel configuration: 1R1G1B
    • Module resolution: 16 dots X 16 dots
    • Module size: 160 x 160mm
  • LED cabinet specifications (standard cabinet):
    • Cabinet size (W x H): 960 x 960mm
    • Cabinet resolution: 96 x 96 pixel dots
    • Module quantity: 36 pieces
    • Cabinet frame material: black powder-coated steel
    • Cabinet weight: 55kg
  • Wavelength:
    • Red LEDs: 620 to 630nm
    • Green LEDs: 520 to 535nm
    • Blue LEDs: 465 to 475nm
  • Red LEDs: 620 to 630nm
  • Green LEDs: 520 to 535nm
  • Blue LEDs: 465 to 475nm
  • Pixel pitch: 10mm
  • Pixel configuration: 1R1G1B
  • Module resolution: 16 dots X 16 dots
  • Module size: 160 x 160mm
  • Cabinet size (W x H): 960 x 960mm
  • Cabinet resolution: 96 x 96 pixel dots
  • Module quantity: 36 pieces
  • Cabinet frame material: black powder-coated steel
  • Cabinet weight: 55kg
  • Screen resolution: 10,000 dots/m²
  • Screen brightness: 8,000 nits
  • Brightness adjustment: manually or automatically
  • Driving method constant current: 1/4A
  • Viewing angle:
    • Horizontal: 110°
    • Vertical: 60°
  • Optimum viewing distance: 5 to 200m
  • Refreshing frequency: 1,500Hz (adjustable by software)
  • Input voltage: 220/50 or 110V AC/60Hz
  • Power consumption:
    • Maximum: 1,200W/m²
    • Average: 400 to 800W/m²
  • Defects rate: ≤0.00001
  • MTBF: >5,000 hours
  • Lifespan: ≥100,000 hours
  • Protection grade: IP65
  • Horizontal: 110°
  • Vertical: 60°
  • Maximum: 1,200W/m²
  • Average: 400 to 800W/m²
