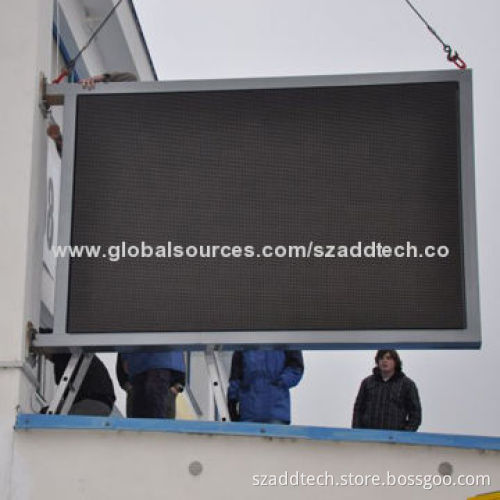

P10 Outdoor LED Video Screen, Installed in One Building Wall, 16 x 16-dot Module Resolution
  • P10 Outdoor LED Video Screen, Installed in One Building Wall, 16 x 16-dot Module Resolution
  • P10 Outdoor LED Video Screen, Installed in One Building Wall, 16 x 16-dot Module Resolution
  • P10 Outdoor LED Video Screen, Installed in One Building Wall, 16 x 16-dot Module Resolution
  • P10 Outdoor LED Video Screen, Installed in One Building Wall, 16 x 16-dot Module Resolution
P10 Outdoor LED Video Screen, Installed in One Building Wall, 16 x 16-dot Module Resolution
P10 Outdoor LED Video Screen, Installed in One Building Wall, 16 x 16-dot Module Resolution
P10 Outdoor LED Video Screen, Installed in One Building Wall, 16 x 16-dot Module Resolution
P10 Outdoor LED Video Screen, Installed in One Building Wall, 16 x 16-dot Module Resolution

P10 Outdoor LED Video Screen, Installed in One Building Wall, 16 x 16-dot Module Resolution

Get Latest Price
Payment Type:
T/T or Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or Western Union
Product Description
Product Description
  •  Specifications:
    • LED lamp:
      • LED lamps: DIP346, oval
      • Wavelength:
        • Red LEDs: 620 to 630nm
        • Green LEDs: 520 to 535nm
        • Blue LEDs: 465 to 475nm
    • LED module:
      • Pixel pitch: 10mm
      • Pixel configuration: 1R1G1B
      • Module resolution: 16 x 16 dots
      • Module size: 160 x 160mm
    • LED standard cabinet:
      • Cabinet size (W x H): 960 x 960mm
      • Cabinet resolution: 96 x 96 pixel dots
      • Module quantity: 36 pieces
      • Cabinet frame material: black powder coated steel
      • Cabinet weight: 55kg
    • Screen:
      • Resolution: 10,000 dots/m²
      • Brightness: 8,000 nits
      • Brightness adjustment: manually or automatically
      • Driving method: constant current 1/4
      • Viewing angle:
        • Horizontal: 110°
        • Vertical: 60°
      • Optimum viewing distance: 5 to 200m
      • Refreshing frequency: 1,500Hz (adjustable by software)
      • Input voltage: 220V AC/50Hz or 110V AC/60Hz
      • Power consumption:
        • Maximum: 1,200W/m²
        • Average: 400 to 800W/m²
      • Defects rate: 0.00001
      • MTBF: >5,000 hours
      • Lifespan: 100,000 hours
      • Protection grade: IP65
      • Operating temperature: -40 to 60°C
      • Operating humidity: 10 to 95% RH
      • Operating systems: Microsoft's Windows 98/Me/2000/NT/XP
  • LED lamp:
    • LED lamps: DIP346, oval
    • Wavelength:
      • Red LEDs: 620 to 630nm
      • Green LEDs: 520 to 535nm
      • Blue LEDs: 465 to 475nm
  • LED module:
    • Pixel pitch: 10mm
    • Pixel configuration: 1R1G1B
    • Module resolution: 16 x 16 dots
    • Module size: 160 x 160mm
  • LED standard cabinet:
    • Cabinet size (W x H): 960 x 960mm
    • Cabinet resolution: 96 x 96 pixel dots
    • Module quantity: 36 pieces
    • Cabinet frame material: black powder coated steel
    • Cabinet weight: 55kg
  • Screen:
    • Resolution: 10,000 dots/m²
    • Brightness: 8,000 nits
    • Brightness adjustment: manually or automatically
    • Driving method: constant current 1/4
    • Viewing angle:
      • Horizontal: 110°
      • Vertical: 60°
    • Optimum viewing distance: 5 to 200m
    • Refreshing frequency: 1,500Hz (adjustable by software)
    • Input voltage: 220V AC/50Hz or 110V AC/60Hz
    • Power consumption:
      • Maximum: 1,200W/m²
      • Average: 400 to 800W/m²
    • Defects rate: 0.00001
    • MTBF: >5,000 hours
    • Lifespan: 100,000 hours
    • Protection grade: IP65
    • Operating temperature: -40 to 60°C
    • Operating humidity: 10 to 95% RH
    • Operating systems: Microsoft's Windows 98/Me/2000/NT/XP
  • LED lamps: DIP346, oval
  • Wavelength:
    • Red LEDs: 620 to 630nm
    • Green LEDs: 520 to 535nm
    • Blue LEDs: 465 to 475nm
  • Red LEDs: 620 to 630nm
  • Green LEDs: 520 to 535nm
  • Blue LEDs: 465 to 475nm
  • Pixel pitch: 10mm
  • Pixel configuration: 1R1G1B
  • Module resolution: 16 x 16 dots
  • Module size: 160 x 160mm
  • Cabinet size (W x H): 960 x 960mm
  • Cabinet resolution: 96 x 96 pixel dots
  • Module quantity: 36 pieces
  • Cabinet frame material: black powder coated steel
  • Cabinet weight: 55kg
  • Resolution: 10,000 dots/m²
  • Brightness: 8,000 nits
  • Brightness adjustment: manually or automatically
  • Driving method: constant current 1/4
  • Viewing angle:
    • Horizontal: 110°
    • Vertical: 60°
  • Optimum viewing distance: 5 to 200m
  • Refreshing frequency: 1,500Hz (adjustable by software)
  • Input voltage: 220V AC/50Hz or 110V AC/60Hz
  • Power consumption:
    • Maximum: 1,200W/m²
    • Average: 400 to 800W/m²
  • Defects rate: 0.00001
  • MTBF: >5,000 hours
  • Lifespan: 100,000 hours
  • Protection grade: IP65
  • Operating temperature: -40 to 60°C
  • Operating humidity: 10 to 95% RH
  • Operating systems: Microsoft's Windows 98/Me/2000/NT/XP
  • Horizontal: 110°
  • Vertical: 60°
  • Maximum: 1,200W/m²
  • Average: 400 to 800W/m²
