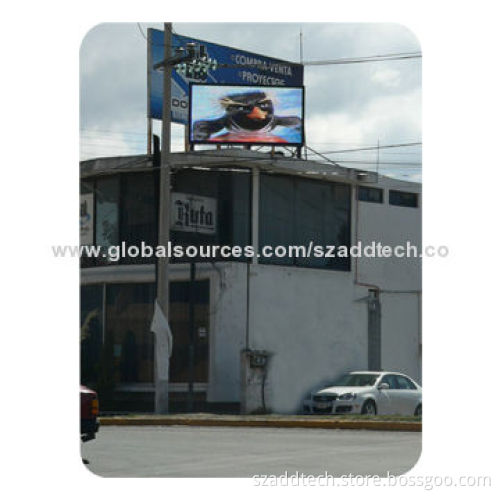

Outdoor Advertising LED Display, Installed on Top of One Building with 9,500 Nits Brightness
  • Outdoor Advertising LED Display, Installed on Top of One Building with 9,500 Nits Brightness
  • Outdoor Advertising LED Display, Installed on Top of One Building with 9,500 Nits Brightness
  • Outdoor Advertising LED Display, Installed on Top of One Building with 9,500 Nits Brightness
Outdoor Advertising LED Display, Installed on Top of One Building with 9,500 Nits Brightness
Outdoor Advertising LED Display, Installed on Top of One Building with 9,500 Nits Brightness
Outdoor Advertising LED Display, Installed on Top of One Building with 9,500 Nits Brightness

Outdoor Advertising LED Display, Installed on Top of One Building with 9,500 Nits Brightness

Get Latest Price
Payment Type:
T/T or Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or Western Union
Product Description
Product Description
  • Specifications:
    • LED module:
      • Pixel pitch: 16mm
      • Pixel configuration: 1R1G1B
      • Module resolution: 16 x 16 dots
      • Module size: 256 x 128mm
    • LED standard cabinet:
      • Size (W x H): 1,024 x 1,024 x 175mm
      • Resolution: 64 x 64 pixel dots
      • Module quantity: 32 pieces
      • Cabinet frame material: black powder coated steel
      • Weight: 63kg
    • Screen:
      • Resolution: 3,906 dots/m²
      • Brightness: 9,500 nits
      • Brightness adjustment: manually or automatically
      • Driving method constant current/static
      • Viewing angle:
        • Horizontal: 120°
        • Vertical: 60°
      • Optimum viewing distance: 15 to 300m
      • Refreshing frequency: 1,500Hz (adjustable by software)
      • Input voltage: 220V AC/50Hz or 110V AC/60Hz
      • Power consumption:
        • Maximum: 1,500W/m²
        • Average: 500 to 1,000W/m²
      • Defects rate: 0.00001
      • MTBF: >5,000 hours
      • Lifespan: 100,000 hours
      • Protection grade: IP65
      • Operating temperature: -40 to 60°C
      • Operating humidity: 10 to 95% RH
      • Operating systems: Microsoft's Windows 98/Me/2000/NT/XP
  • LED module:
    • Pixel pitch: 16mm
    • Pixel configuration: 1R1G1B
    • Module resolution: 16 x 16 dots
    • Module size: 256 x 128mm
  • LED standard cabinet:
    • Size (W x H): 1,024 x 1,024 x 175mm
    • Resolution: 64 x 64 pixel dots
    • Module quantity: 32 pieces
    • Cabinet frame material: black powder coated steel
    • Weight: 63kg
  • Screen:
    • Resolution: 3,906 dots/m²
    • Brightness: 9,500 nits
    • Brightness adjustment: manually or automatically
    • Driving method constant current/static
    • Viewing angle:
      • Horizontal: 120°
      • Vertical: 60°
    • Optimum viewing distance: 15 to 300m
    • Refreshing frequency: 1,500Hz (adjustable by software)
    • Input voltage: 220V AC/50Hz or 110V AC/60Hz
    • Power consumption:
      • Maximum: 1,500W/m²
      • Average: 500 to 1,000W/m²
    • Defects rate: 0.00001
    • MTBF: >5,000 hours
    • Lifespan: 100,000 hours
    • Protection grade: IP65
    • Operating temperature: -40 to 60°C
    • Operating humidity: 10 to 95% RH
    • Operating systems: Microsoft's Windows 98/Me/2000/NT/XP
  • Pixel pitch: 16mm
  • Pixel configuration: 1R1G1B
  • Module resolution: 16 x 16 dots
  • Module size: 256 x 128mm
  • Size (W x H): 1,024 x 1,024 x 175mm
  • Resolution: 64 x 64 pixel dots
  • Module quantity: 32 pieces
  • Cabinet frame material: black powder coated steel
  • Weight: 63kg
  • Resolution: 3,906 dots/m²
  • Brightness: 9,500 nits
  • Brightness adjustment: manually or automatically
  • Driving method constant current/static
  • Viewing angle:
    • Horizontal: 120°
    • Vertical: 60°
  • Optimum viewing distance: 15 to 300m
  • Refreshing frequency: 1,500Hz (adjustable by software)
  • Input voltage: 220V AC/50Hz or 110V AC/60Hz
  • Power consumption:
    • Maximum: 1,500W/m²
    • Average: 500 to 1,000W/m²
  • Defects rate: 0.00001
  • MTBF: >5,000 hours
  • Lifespan: 100,000 hours
  • Protection grade: IP65
  • Operating temperature: -40 to 60°C
  • Operating humidity: 10 to 95% RH
  • Operating systems: Microsoft's Windows 98/Me/2000/NT/XP
  • Horizontal: 120°
  • Vertical: 60°
  • Maximum: 1,500W/m²
  • Average: 500 to 1,000W/m²
