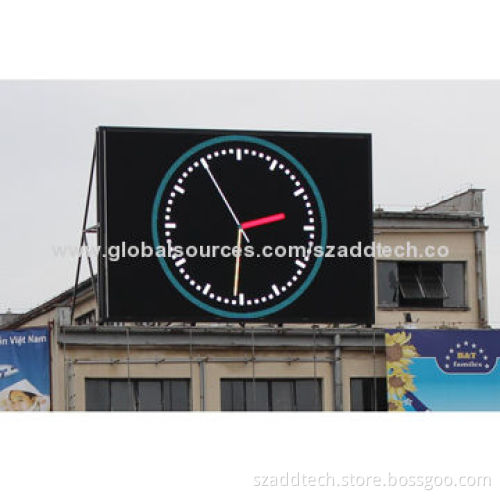

LED Digital Display for Advertising Applications, Customized Sizes Accepted

Get Latest Price

Payment Type:: T/T or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union

Product Description

LED lamp parameters:

1 LED lamp DIP346, oval
Wavelength:
- Red LEDs: 620 to 630nm
- Green LEDs: 520 to 535nm
- Blue LEDs: 465 to 475nm

Specifications:

LED module:
- Pixel pitch: 16mm
- Pixel configuration: 1R1G1B
- Module resolution: 16 x 8 pixel dots
- Module size: 256 x 128mm
LED cabinet (standard cabinet):
- Cabinet dimensions (W x H x D): 1,024 x 1,024 x 175mm
- Cabinet resolutions: 64 x 64 pixel dots
- 3 module quantity: 32 pieces
- Cabinet frame material: black powder coated steel
- Cabinet weight: 63kg

Screen parameters:

LED display screen resolution: 3,906 dots/m²
LED display screen brightness: 9,500 nits
Brightness adjustment: manually or automatically
Driving method: constant current/static
Viewing angle:
- Horizontal: 120°
- Vertical: 60°
Optimum viewing distance: 15 to 300m
Refreshing frequency: 1.500Hz (adjustable by software)
Input voltage: 220V AC/50Hz or 110V AC/60Hz
Power consumption:
- Maximum: 1,500W/m²
- Average: 500 to 1,000W/m²
Defects rate: ≤0.00001
MTBF: >5,000 hours
Lifespan: ≥100,000 hours
Protection grade: IP65
Operating temperature: -40 to 60°C
Operating humidity: 10 to 95% RH
Operating systems: Microsoft's Windows 98/ME/2000/NT/XP

1 LED lamp DIP346, oval

Wavelength:

Red LEDs: 620 to 630nm
Green LEDs: 520 to 535nm
Blue LEDs: 465 to 475nm

Red LEDs: 620 to 630nm

Green LEDs: 520 to 535nm

Blue LEDs: 465 to 475nm

LED module:

Pixel pitch: 16mm
Pixel configuration: 1R1G1B
Module resolution: 16 x 8 pixel dots
Module size: 256 x 128mm

LED cabinet (standard cabinet):

Cabinet dimensions (W x H x D): 1,024 x 1,024 x 175mm
Cabinet resolutions: 64 x 64 pixel dots
3 module quantity: 32 pieces
Cabinet frame material: black powder coated steel
Cabinet weight: 63kg

Pixel pitch: 16mm

Pixel configuration: 1R1G1B

Module resolution: 16 x 8 pixel dots

Module size: 256 x 128mm

Cabinet dimensions (W x H x D): 1,024 x 1,024 x 175mm

Cabinet resolutions: 64 x 64 pixel dots

3 module quantity: 32 pieces

Cabinet frame material: black powder coated steel

Cabinet weight: 63kg

LED display screen resolution: 3,906 dots/m²

LED display screen brightness: 9,500 nits

Brightness adjustment: manually or automatically

Driving method: constant current/static

Viewing angle:

Horizontal: 120°
Vertical: 60°

Optimum viewing distance: 15 to 300m

Refreshing frequency: 1.500Hz (adjustable by software)

Input voltage: 220V AC/50Hz or 110V AC/60Hz

Power consumption:

Maximum: 1,500W/m²
Average: 500 to 1,000W/m²

Defects rate: ≤0.00001

MTBF: >5,000 hours

Lifespan: ≥100,000 hours

Protection grade: IP65

Operating temperature: -40 to 60°C

Operating humidity: 10 to 95% RH

Operating systems: Microsoft's Windows 98/ME/2000/NT/XP

Horizontal: 120°

Vertical: 60°

Maximum: 1,500W/m²

Average: 500 to 1,000W/m²
