Rental Outdoor LED Display, 800 x 960mm Cabinet, Super-thin CabinetNew

Rental Outdoor LED Display, 800 x 960mm Cabinet, Super-thin CabinetNew

Get Latest Price

Payment Type:: T/T or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union

Product Description

LED lamp parameters:

LED lamps: DIP346, oval
Wavelength:
- Red LEDs: 620-630nm
- Green LEDs: 520-535nm
- Blue LEDs: 465-475nm

LED module specifications:

Pixel pitch: 10mm
Pixel configuration: 1R1G1B
Module resolution: 16 x 16 dots
Module size: 160 x 160mm

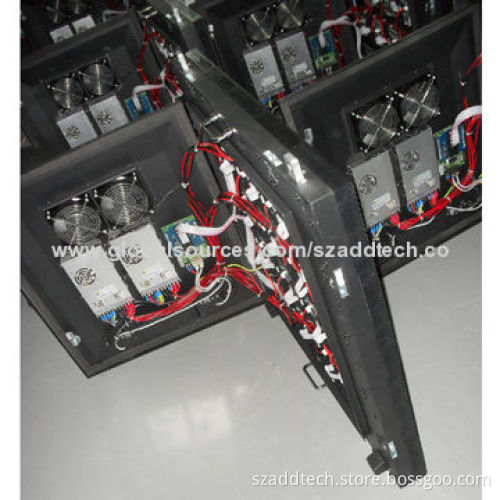

LED cabinet specifications (standard cabinet):

Cabinet size: 800 x 960mm
Cabinet resolution: 80 x 96 pixel dots
Module quantity: 30pcs
Cabinet frame material: black powder-coated steel
Cabinet weight: 36kg

Screen parameters:

Screen resolution: 10,000 dots/m²
Screen brightness: 8000 nits
Brightness adjustment: manually or automatically
Driving method constant current: 1/4
Viewing angle:
- Horizontal: 110°
- Vertical: 60°
Optimum viewing distance: 5 to 200m
Refreshing frequency: 1500Hz (adjustable by software)
Input voltage: AC 220V/50Hz or AC 110V/60Hz
Power consumption:
- Maximum: 1200W/m²
- Average: 400-800 W/m²
Defects rate: ≤0.00001
MTBF: >5000 hours
Lifespan: ≥100,000 hours
Protection grade: IP65
Operating temperature: -40 to 60°C
Operating humidity: 10 to 95% RH
Operating system: Windows98/me/2000/NT/XP

LED lamps: DIP346, oval

Wavelength:

Red LEDs: 620-630nm
Green LEDs: 520-535nm
Blue LEDs: 465-475nm

Red LEDs: 620-630nm

Green LEDs: 520-535nm

Blue LEDs: 465-475nm

Pixel pitch: 10mm

Pixel configuration: 1R1G1B

Module resolution: 16 x 16 dots

Module size: 160 x 160mm

Cabinet size: 800 x 960mm

Cabinet resolution: 80 x 96 pixel dots

Module quantity: 30pcs

Cabinet frame material: black powder-coated steel

Cabinet weight: 36kg

Screen resolution: 10,000 dots/m²

Screen brightness: 8000 nits

Brightness adjustment: manually or automatically

Driving method constant current: 1/4

Viewing angle:

Horizontal: 110°
Vertical: 60°

Optimum viewing distance: 5 to 200m

Refreshing frequency: 1500Hz (adjustable by software)

Input voltage: AC 220V/50Hz or AC 110V/60Hz

Power consumption:

Maximum: 1200W/m²
Average: 400-800 W/m²

Defects rate: ≤0.00001

MTBF: >5000 hours

Lifespan: ≥100,000 hours

Protection grade: IP65

Operating temperature: -40 to 60°C

Operating humidity: 10 to 95% RH

Operating system: Windows98/me/2000/NT/XP

Horizontal: 110°

Vertical: 60°

Maximum: 1200W/m²

Average: 400-800 W/m²
