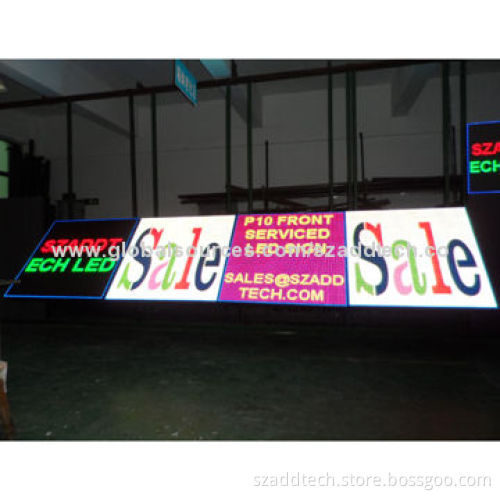

Outdoor LED Message Signage with 8,500nits Maximum Brightness

Get Latest Price

Payment Type:: T/T or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union

Product Description

LED sign model: P10mm outdoor DIP RGB full-color LED sign model

LED sign valid area: 1,280mm tall by 5120mm wide (4' 2" x 16'10")

Pixel resolution: 128 by 512 = 65,536-pixel dots

LED sign makeup

According to our company design, this large LED sign will be made up of 4 units LED cabinet, and each LED cabinet size 1280mm x 1280mm

Pixel configuration: 1R1G1B

LED lamp DIP346/oval shape

LED sign brightness: 8,500nits (maximum)

Brightness adjustment: available by LED software

Viewing distance: 5 meters to 150 meters

Viewing angle:

Horizontal: 120°
Vertical: 60°

Driving current: constant current

Scanning mode: 1/4

Control system: LINSN synchronous control system

LED software: LED studio

Control system: configuration

LED sending card + LED graphic card + LED receiving card + LED software + computer (usually the desktop computer is provided by end customer)

Operating system: Windows XP/7/Vista

Showing contents: scrolling messages, graphics, real-time videos

Communication by Ethernet RJ45 connectors and CAT5 cable from computer to the LED sign (the distance from the computer to the LED sign should be within 150 meters usually)

LED sign protection:

This LED sign is designed to be installed and used directly outdoors, and the protection level is IP65, rain waterproof and dust-proof

Working temperature: -20 to 60°C

Horizontal: 120°

Vertical: 60°

This LED sign is designed to be installed and used directly outdoors, and the protection level is IP65, rain waterproof and dust-proof
