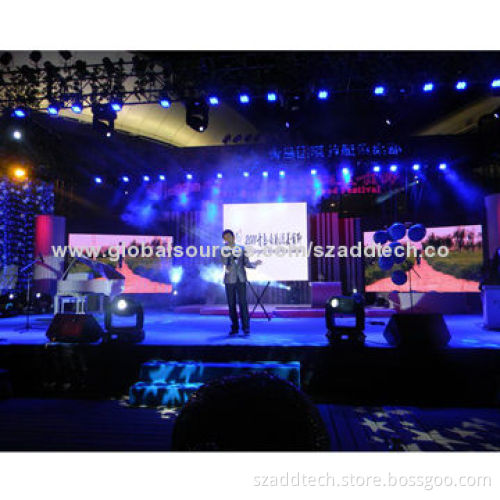

LED Panel, Installed in Stage

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union

Product Description

LED module specifications:

LED cabinet specifications (standard cabinet):

Screen parameters:

Pixel pitch: 5mm

Pixel configuration: RGB (SMD 3-in-1)

Module resolution: 32 dots x 32 dots

Module size: 160 x 160mm

Cabinet size (W x H): 640 x 640mm

Cabinet resolution: 128 x 128-pixel dots

Module quantity: 16pcs

Cabinet frame material: black powder-coated steel (aluminum for option)

Cabinet weight: 18kg

Screen resolution: 40,000 dots/㎡

Screen brightness: 2000 nits

Brightness adjustment: manually by software

Driving method constant current: 1/16

Viewing angle: horizontal 120°, vertical: 120°

Optimum viewing distance: >4m

Refreshing frequency: ≥1000Hz

Grey scale: 4096 grades

Displaying colors: 69-billion

Input voltage: AC 110/240V or 50/60Hz

Power consumption: maximum of 1000W/m², 300-650W/m² average

Defect rate: ≤0.00001

MTBF: >5000 hours

Lifespan: ≥100,000 hours

Protection grade: IP43

Operating temperature: ﹣20-60°C

Operating humidity: 10-95%

Operating system: Windows 98/ME/2000/NT/XP

Video processor: HDMI, HD-SDI, DVI, VGA
