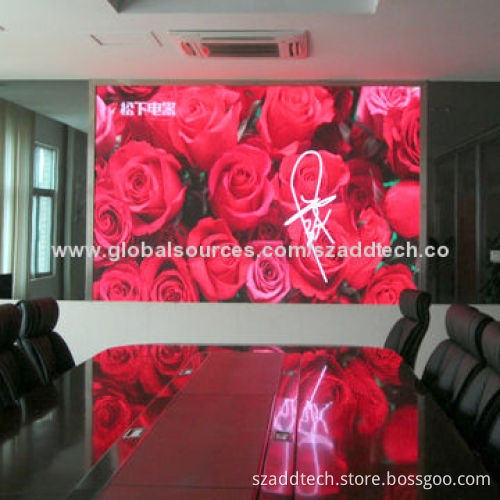

Indoor SMD Full Color LED Screen, Sizes can be Customized

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

LED type: SMD 0805

Module quantity: 18 pieces

Pixel configuration: 1R1G1B (SMD 3-in-1)

Cabinet frame material: black powder-coated steel

Screen resolution: 17,222 dots/m²

Pixel pitch: 7.62mm

Screen brightness: 3,000 nits

Module resolution: 32 x 16 dots

Cabinet resolution: 96 x 96 pixel dots

Brightness adjustment: manual

Wavelength:

Driving method: 1/8 scan (constant current)

Viewing angle:

Optimum viewing distance: 6m

Defect rate: ≤0.00001%

Power consumption:

Input voltage: 220V AC at 50Hz or 110V AC at 60Hz

Refreshing frequency: ≥180Hz

Protection grade: IP43

MTBF: 5,000 hours

Lifespan: ≥100,000 hours

Sizes:

Cabinet weight: 26.5kg

Red: 628 to 630nm

Green: 520 to 525nm

Blue: 465 to 470nm

Horizontal: 120°

Vertical: 120°

Maximum: 900W/m²

Average: 300 to 650W/m²

Module: 244 x 122mm

Cabinet: (W) 732 x (H) 732mm
