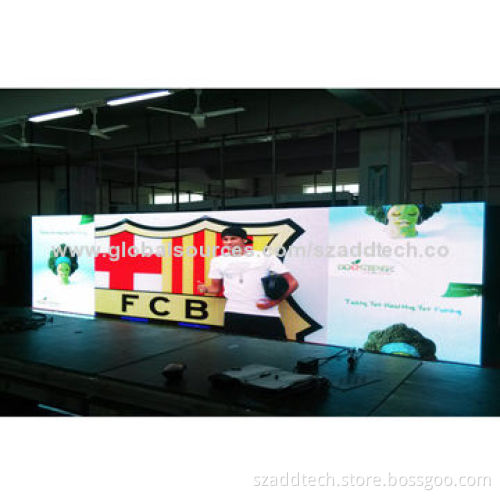

P10mm Indoor Front Serviced LED Screen, 220/50 or 110V AC/60Hz Input VoltageNew

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union

Product Description

Pixel pitch: 10mm

Pixel configuration: 1R1G1B

Module resolution: 32 x 16 dots

Module size: 320 x 160mm

Cabinet size (WxH): 960 x 960mm

Cabinet resolution: 96 x 96 pixel dots

Module quantity: 18 pieces

Cabinet frame material: black powder coated steel

Cabinet weight: 18kg

Screen resolution: 10,000 dots/㎡

Screen brightness: 1,600 nits

Brightness adjustment: manually

Driving method: constant current 1/8

Viewing angle:

Optimum viewing distance: >8m

Refreshing frequency: ≥180Hz

Input voltage: 220/50 or 110V AC/60Hz

Power consumption:

Defects rate: ≤0.00001

MTBF: >5,000 hours

Lifespan: ≥100,000 hours

Protection grade: IP43

Operating temperature: -20-60℃

Operating humidity: 10-95% RH

Operating system: Microsoft's Windows 98/Me/2000/NT/XP

Horizontal: 120°

Vertical: 120°

Maximum: 500W/㎡

Average: 200-300W/㎡
