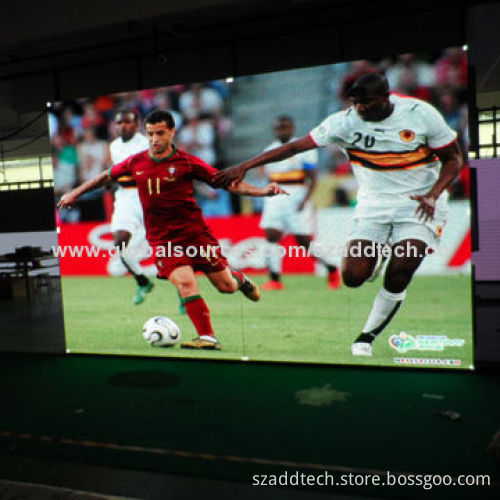

World Cup Indoor LED Video Wall Screen with 220V AC/50Hz or 110V AC/60Hz Input VoltageNew

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union

Product Description

Parameters:

Screen parameters:

LED lamps 3528 SMD

Wavelength red LEDs: 628-630nm

Green LEDs: 520-525nm

Blue LEDs: 465-470nm

Pixel pitch: 7.62mm

Pixel configuration: 1R1G1B (SMD 3-in-1)

Module resolution: 32 x 16 dots

Module size: 244 x 122mm

Cabinet size (W x H): 976 x 854mm

Cabinet resolution: 128 x 112 pixel dots

Module quantity: 28 pieces

Cabinet frame material: black powder coated steel

Cabinet weight: 25kg

Screen resolution: 17,222 dots/㎡

Screen brightness: 1,700 nits

Brightness: adjustment manually

Driving method: constant current 1/8

Viewing angle: 120°

Optimum viewing distance: >6m

Refreshing frequency: ≥180Hz

Input voltage: 220V AC/50Hz or 110V AC/60Hz

Power consumption: 800W/㎡

Average: 400-650W/㎡

Defects rate: ≤0.00001

MTBF: >5,000 hours

Lifespan: ≥100,000 hours

Protection grade: IP43

Temperature-operating: 20-60°C

Humidity-operating: 10-95% RH

Operating system: Microsoft's Windows 98/Me/2000/NT/XP
