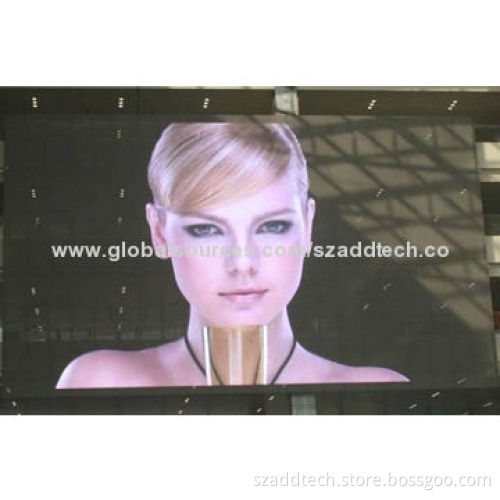

Indoor SMD LED Video Display Screen with 10mm Pixel Pitch, 100,000 Hours Lifespan

Get Latest Price

Payment Type:: T/T or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union

Product Description

Specifications:

LED lamps: 0805 SMD
Wavelength:
- Red LEDs: 628 to 630nm
- Green LEDs: 520 to 525nm
- Blue LEDs: 465 to 470nm
LED module:
- Pixel pitch: 10mm
- Pixel configuration: 1R1G1B
- Module resolution: 32 x 16 dots
- Module size: 320 x 160mm
LED cabinet (standard cabinet):
Size (W x H): 960 x 800mm
Resolution: 96 x 80 pixel dots
Module quantity: 15 pieces
Frame material: black powder-coated steel
Weight: 34.5kg
Screen:
Resolution: 10,000 dots/¡
Brightness: 1,000 nits
Brightness adjustment: manually
Driving method: constant current 1/8
Viewing angle:
- Horizontal: 120°
- Vertical: 120°
Optimum viewing distance: >8m
Refreshing frequency: e180Hz
Input voltage: 220V AC/50Hz or 110V AC/60Hz
Power consumption:
Maximum: 500W/¡
Average: 200 to 300W/¡
Defects rate: d0.00001
MTBF: >5,000 hours
Lifespan: e100,000 hours
Protection grade: IP43
Operating temperature: -20 to +60°C
Operating humidity: 10 to 95% RH
Operating systems: Microsoft's Windows 98/Me/2000/NT/XP

LED lamps: 0805 SMD

Wavelength:

Red LEDs: 628 to 630nm
Green LEDs: 520 to 525nm
Blue LEDs: 465 to 470nm

LED module:

Pixel pitch: 10mm
Pixel configuration: 1R1G1B
Module resolution: 32 x 16 dots
Module size: 320 x 160mm

LED cabinet (standard cabinet):

Size (W x H): 960 x 800mm

Resolution: 96 x 80 pixel dots

Module quantity: 15 pieces

Frame material: black powder-coated steel

Weight: 34.5kg

Screen:

Resolution: 10,000 dots/¡

Brightness: 1,000 nits

Brightness adjustment: manually

Driving method: constant current 1/8

Viewing angle:

Horizontal: 120°
Vertical: 120°

Optimum viewing distance: >8m

Refreshing frequency: e180Hz

Input voltage: 220V AC/50Hz or 110V AC/60Hz

Power consumption:

Maximum: 500W/¡

Average: 200 to 300W/¡

Defects rate: d0.00001

MTBF: >5,000 hours

Lifespan: e100,000 hours

Protection grade: IP43

Operating temperature: -20 to +60°C

Operating humidity: 10 to 95% RH

Operating systems: Microsoft's Windows 98/Me/2000/NT/XP

Red LEDs: 628 to 630nm

Green LEDs: 520 to 525nm

Blue LEDs: 465 to 470nm

Pixel pitch: 10mm

Pixel configuration: 1R1G1B

Module resolution: 32 x 16 dots

Module size: 320 x 160mm

Horizontal: 120°

Vertical: 120°
