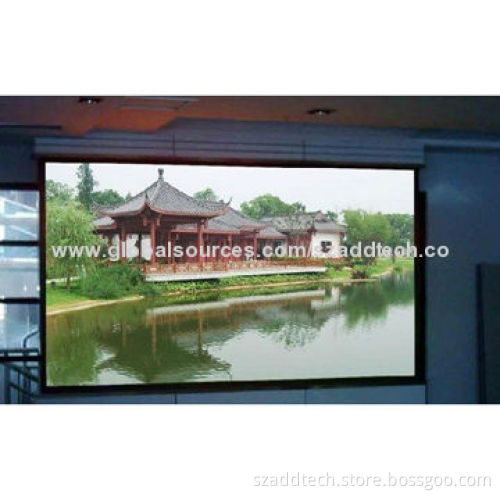

P3mm Indoor SMD Full Color LED Panel Screen, 111,111 dots/m² Physical Pixel Density

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union

Product Description

Specifications:

Part no: P3--1R1G1B

Quantity of display: 1

Physical pixel pitch: 3mm

Physical pixel density: 111,111 dots/m²

Pixel composition: 1 red, 1 green, 1 blue

Cabinet depth: <180mm

Brightness: e6,500 nits

Gray level: 4,096 grades

Colors: 16.7 millions

Viewing angle:

Best viewing distance: 10, 150m

Scan frequency: e600Hz

Video frame rate: e120fps

Color temperature: 6,500 to 9,500°C adjustable

Control method: controlled by PC, synchronous display

Continual operating period: e24 hours

MTBF: e10,000 hours

Lifespan (half brightness): e100,000 hours

Level up degree: d±1mm

Weight: 35kg/m²

IP rate: IP65 (front side), IP65 (rear side)

Average power consumption: 439W/m²

Peak power consumption: 878W/m²

Input voltage: 220V AC/50Hz ±10% or 110V AC/60Hz±10%

Operating environment:

Operating system: Microsoft's Windows 98/2000/Me/XP

Type of video signal: S-video, composite video, RGB, VGA,DVI

Horizontal: e150°

Vertical: e60°

Temperature: -20 +60°C

Humidity: 10 to 95% RH
