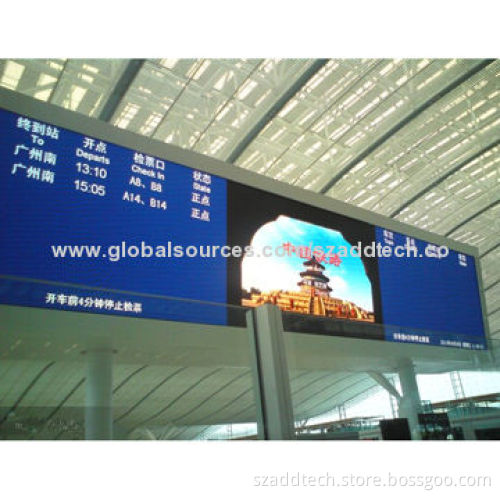

Indoor LED Display, Installed in One Railway Station
  • Indoor LED Display, Installed in One Railway Station
Indoor LED Display, Installed in One Railway Station

Indoor LED Display, Installed in One Railway Station

Get Latest Price
Payment Type:
T/T or Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or Western Union
Product Description
Product Description
  • Specifications:
    • LED module:
      • Pixel pitch: 7.62mm
      • Pixel configuration: 1R1G1B (3-in-1 SMD)
      • Module resolution: 32 x 16 dots
      • Module size: 244 x 122mm
    • LED cabinet (standard cabinet):
      • Cabinet size (W x H): 732 x 732mm
      • Cabinet resolution: 96 x 96-pixel dots
      • Module quantity: 18 pieces
      • Cabinet frame material: black powder-coated steel
      • Cabinet weight: 26.5kg
    • Screen parameters:
      • Screen resolution: 17,222 dots/m²
      • Screen brightness: 3,000 nits
      • Brightness adjustment: manually
      • Driving method: constant current 1/8
      • Viewing angle:
        • Horizontal: 120°
        • Vertical: 120°
      • Optimum viewing distance: >6m
      • Refreshing frequency: ≥180Hz
      • Input voltage: 220V AC/50Hz or 110V AC/60Hz
      • Power consumption:
        • Maximum: 900W/m²
        • Average: 300-650W/m²
      • Defect rate: ≤0.00001
      • MTBF: >5000 hours
      • Lifespan: ≥100,000 hours
      • Protection grade: IP43
      • Operating temperature: -20 to 60°C
      • Operating humidity: 10 to 95% RH
      • Operating system: Microsoft's Windows 98/Me/2000/NT/XP
  • LED module:
    • Pixel pitch: 7.62mm
    • Pixel configuration: 1R1G1B (3-in-1 SMD)
    • Module resolution: 32 x 16 dots
    • Module size: 244 x 122mm
  • LED cabinet (standard cabinet):
    • Cabinet size (W x H): 732 x 732mm
    • Cabinet resolution: 96 x 96-pixel dots
    • Module quantity: 18 pieces
    • Cabinet frame material: black powder-coated steel
    • Cabinet weight: 26.5kg
  • Screen parameters:
    • Screen resolution: 17,222 dots/m²
    • Screen brightness: 3,000 nits
    • Brightness adjustment: manually
    • Driving method: constant current 1/8
    • Viewing angle:
      • Horizontal: 120°
      • Vertical: 120°
    • Optimum viewing distance: >6m
    • Refreshing frequency: ≥180Hz
    • Input voltage: 220V AC/50Hz or 110V AC/60Hz
    • Power consumption:
      • Maximum: 900W/m²
      • Average: 300-650W/m²
    • Defect rate: ≤0.00001
    • MTBF: >5000 hours
    • Lifespan: ≥100,000 hours
    • Protection grade: IP43
    • Operating temperature: -20 to 60°C
    • Operating humidity: 10 to 95% RH
    • Operating system: Microsoft's Windows 98/Me/2000/NT/XP
  • Pixel pitch: 7.62mm
  • Pixel configuration: 1R1G1B (3-in-1 SMD)
  • Module resolution: 32 x 16 dots
  • Module size: 244 x 122mm
  • Cabinet size (W x H): 732 x 732mm
  • Cabinet resolution: 96 x 96-pixel dots
  • Module quantity: 18 pieces
  • Cabinet frame material: black powder-coated steel
  • Cabinet weight: 26.5kg
  • Screen resolution: 17,222 dots/m²
  • Screen brightness: 3,000 nits
  • Brightness adjustment: manually
  • Driving method: constant current 1/8
  • Viewing angle:
    • Horizontal: 120°
    • Vertical: 120°
  • Optimum viewing distance: >6m
  • Refreshing frequency: ≥180Hz
  • Input voltage: 220V AC/50Hz or 110V AC/60Hz
  • Power consumption:
    • Maximum: 900W/m²
    • Average: 300-650W/m²
  • Defect rate: ≤0.00001
  • MTBF: >5000 hours
  • Lifespan: ≥100,000 hours
  • Protection grade: IP43
  • Operating temperature: -20 to 60°C
  • Operating humidity: 10 to 95% RH
  • Operating system: Microsoft's Windows 98/Me/2000/NT/XP
  • Horizontal: 120°
  • Vertical: 120°
  • Maximum: 900W/m²
  • Average: 300-650W/m²
