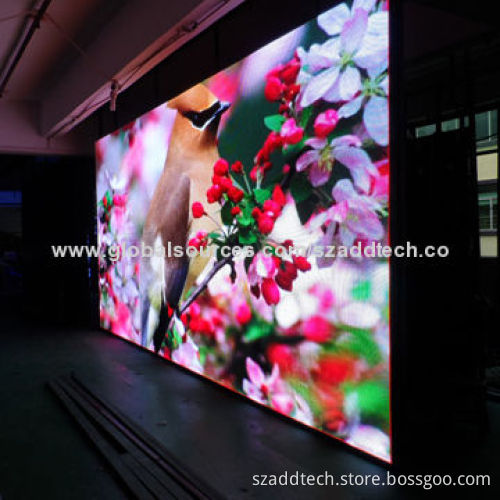

Europe P6mm Indoor LED Display for Rental Use, 32 x 16 Dots Module ResolutionNew

Europe P6mm Indoor LED Display for Rental Use, 32 x 16 Dots Module ResolutionNew

Get Latest Price

Payment Type:: T/T or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union

Product Description

LED lamp parameters: LED lamps SMD 0603

LED module specifications:

Pixel pitch: 6mm
Pixel configuration: RGB (SMD 3-in-1)
Module resolution: 32 x 16 dots
Module size: 192 x 96mm

LED cabinet specifications (standard cabinet)

Size (WxH): 768 x 768mm
Resolution: 128 x 128 pixel dots
Module quantity: 32 pieces
Frame material: black powder coated steel (aluminum for optional)
Weight: 22kg

Screen parameters:

Resolution: 27,777 dots/m²
Brightness: 2,000 nits
Brightness adjustment: manually
Driving method: constant current 1/8
Viewing angle:
- Horizontal: 120°
- Vertical: 120°
Optimum viewing distance: >5 meters
Refreshing frequency: 1,000Hz
Grayscale: 4,096 grades
Displaying colors: 69-billion
Input voltage full range: 110-240V AC, 50/60Hz
Power consumption:
- Maximum: 1,200W/m²
- Average: 400-800W/m²
Defects rate: ≤0.00001
MTBF: >5,000 hours
Lifespan: ≥100,000 hours
Protection grade: IP43
Operating temperature: -20-+60℃
Operating humidity: 10-95% RH
Operating system: Microsoft's Windows 98/Me/2000/NT/XP
Video processor: HDMI, HD-SDI, DVI, VGA

Pixel pitch: 6mm

Pixel configuration: RGB (SMD 3-in-1)

Module resolution: 32 x 16 dots

Module size: 192 x 96mm

Size (WxH): 768 x 768mm

Resolution: 128 x 128 pixel dots

Module quantity: 32 pieces

Frame material: black powder coated steel (aluminum for optional)

Weight: 22kg

Resolution: 27,777 dots/m²

Brightness: 2,000 nits

Brightness adjustment: manually

Driving method: constant current 1/8

Viewing angle:

Horizontal: 120°
Vertical: 120°

Optimum viewing distance: >5 meters

Refreshing frequency: 1,000Hz

Grayscale: 4,096 grades

Displaying colors: 69-billion

Input voltage full range: 110-240V AC, 50/60Hz

Power consumption:

Maximum: 1,200W/m²
Average: 400-800W/m²

Defects rate: ≤0.00001

MTBF: >5,000 hours

Lifespan: ≥100,000 hours

Protection grade: IP43

Operating temperature: -20-+60℃

Operating humidity: 10-95% RH

Operating system: Microsoft's Windows 98/Me/2000/NT/XP

Video processor: HDMI, HD-SDI, DVI, VGA

Horizontal: 120°

Vertical: 120°

Maximum: 1,200W/m²

Average: 400-800W/m²
