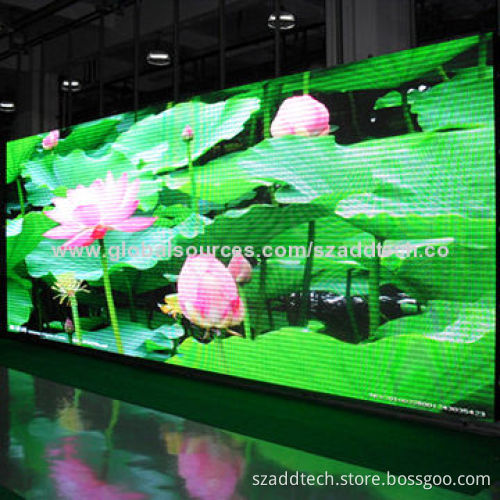

Indoor HD LED Video Screen, Used in Large Discos, Bars, Concerts, Events and Wedding PlacesNew

Get Latest Price

Payment Type:: T/T or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union

Product Description

LED lamp:

Lamp type: 0603 SMD

Wavelength:

Red LED: 628 to 630nm
Green LED: 520 to 525nm
Blue LED: 465 to 470nm

LED module:

Resolution: 32 x 16 dots
Pixel configuration: RGB (SMD 3-in-1)
Pixel pitch: 6mm
Size: 192 x 96mm

LED cabinet (standard):

Resolution: 160 x 128 pixel dots
Frame material: black powder-coated steel
Size: 960 x 768mm
Weight: 33kg
Packing quantity: 40 pieces

Screen:

Resolution: 27,777 dots/m²
Brightness: 5,000 nits
Brightness adjustment: manually
Driving method: constant current 1/8

Viewing angle:

Horizontal: 120°
Vertical: 120°

Optimum viewing distance: ≥5m

Power consumption:

Maximum: 1,200W/m²
Average: 400 to 800W/m²

Input voltage: 220/50 or 110V AC/60Hz

Refreshing frequency: ≥180Hz

Defects rate: ≤0.00001

MTBF: ≥5,000 hours

Lifespan: ≥100,000 hours

Protection grade: IP43

Lamp type: 0603 SMD

Red LED: 628 to 630nm

Green LED: 520 to 525nm

Blue LED: 465 to 470nm

Resolution: 32 x 16 dots

Pixel configuration: RGB (SMD 3-in-1)

Pixel pitch: 6mm

Size: 192 x 96mm

Resolution: 160 x 128 pixel dots

Frame material: black powder-coated steel

Size: 960 x 768mm

Weight: 33kg

Packing quantity: 40 pieces

Resolution: 27,777 dots/m²

Brightness: 5,000 nits

Brightness adjustment: manually

Driving method: constant current 1/8

Horizontal: 120°

Vertical: 120°

Maximum: 1,200W/m²

Average: 400 to 800W/m²
