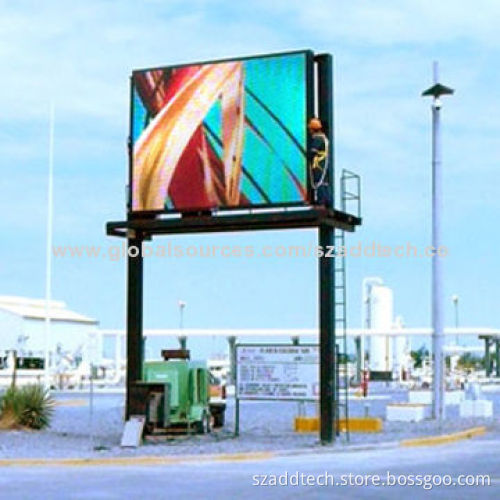

LED Billboards for Outdoor Advertising Use, with 16mm Pixel Pitch

Get Latest Price

Payment Type:: T/T or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union

Product Description

LED lamp:

LED lamp: DIP546, oval shape

Wavelength:

Red LED: 620 to 630Nm
Green LED: 520 to 535Nm
Blue LED: 465 to 475Nm

LED module:

Pixel pitch: 16mm
Pixel configuration: 2R, 1G and 1B
Module resolution: 8 x 16 dots
Module size: 128 x 256mm

LED cabinet (standard):

Cabinet resolution: 64 x 64 pixel dots
Module quantity: 32 pieces
Cabinet frame material: black powder-coated steel
Cabinet size: (W) 1024 x (H) 1024mm
Cabinet weight: 73kg

Screen:

Resolution: 3906 dots/m²
Brightness: 9,000 nits
Brightness adjustment: manually or automatically
Driving methods: constant, current and static
Viewing angle:
- Horizontal: 120°
- Vertical: 60°
Optimum viewing distance: 15 to 100m
Refreshing frequency: 1500Hz
Input power supply: 220 at 50 or 110V AC at 60Hz
Power consumption:
- Maximum: 1000W/m²
- Average: 400 to 700W/m²
Defects rate: ≤0.00001
MTBF: >5000 hours
Lifespan: ≥100,000 hours
Protection grade: IP65

LED lamp: DIP546, oval shape

Red LED: 620 to 630Nm

Green LED: 520 to 535Nm

Blue LED: 465 to 475Nm

Pixel pitch: 16mm

Pixel configuration: 2R, 1G and 1B

Module resolution: 8 x 16 dots

Module size: 128 x 256mm

Cabinet resolution: 64 x 64 pixel dots

Module quantity: 32 pieces

Cabinet frame material: black powder-coated steel

Cabinet size: (W) 1024 x (H) 1024mm

Cabinet weight: 73kg

Resolution: 3906 dots/m²

Brightness: 9,000 nits

Brightness adjustment: manually or automatically

Driving methods: constant, current and static

Viewing angle:

Horizontal: 120°
Vertical: 60°

Optimum viewing distance: 15 to 100m

Refreshing frequency: 1500Hz

Input power supply: 220 at 50 or 110V AC at 60Hz

Power consumption:

Maximum: 1000W/m²
Average: 400 to 700W/m²

Defects rate: ≤0.00001

MTBF: >5000 hours

Lifespan: ≥100,000 hours

Protection grade: IP65

Horizontal: 120°

Vertical: 60°

Maximum: 1000W/m²

Average: 400 to 700W/m²
