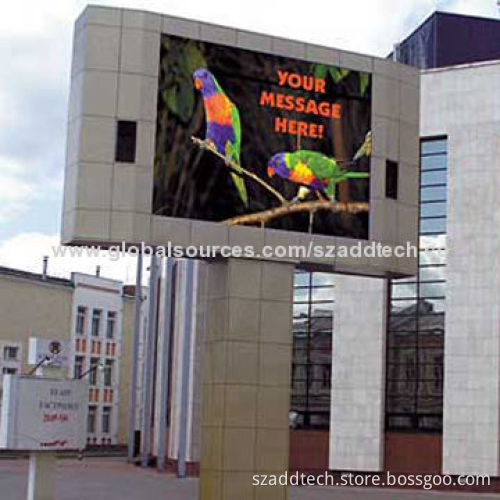

Electronic LED Billboard, Lifespan is Over 100,000 Hours

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union

Product Description

LED module specifications:

LED cabinet specifications (standard cabinet):

Screen parameters:

Pixel pitch: 16mm

Pixel configuration: 2R1G1B

Module resolution: 16 x 8 dots

Module size: 256 x 128mm

Cabinet size (W x H x D): 960 x 960 x 150mm

Cabinet resolution: 96 x 96 pixel dots

Module quantity: 36pcs

Cabinet frame material: black powder-coated steel

Cabinet weight: 44kg

Screen resolution: 3,906 dots/m²

Screen brightness: 9,500 nits

Brightness: adjustment manually or automatically

Driving method: constant current, static

Viewing angle: horizontal 120°, vertical 60°

Optimum viewing distance: 15 to 300m

Refreshing frequency: 180Hz

Input voltage: AC 220V/50Hz or AC 110V/60Hz

Power consumption: maximum: 1500W/m², average: 500-1000W/m²

Defects rate: 0.00001

MTBF: >5,000 hours

Lifespan: 100,000 hours

Protection grade: IP65

Operating temperature: 40-60°C

Operating humidity: 10-95%

Operating systems: Windows 98/Me/2000/NT/XP
