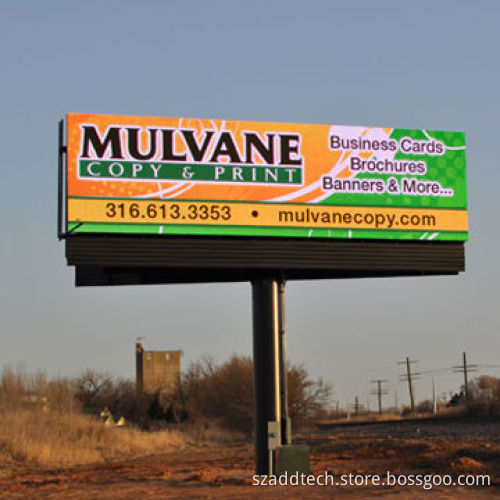

LED High-way Billboard, High-brightness, Easy-to-install
  • LED High-way Billboard, High-brightness, Easy-to-install
LED High-way Billboard, High-brightness, Easy-to-install

LED High-way Billboard, High-brightness, Easy-to-install

Get Latest Price
Payment Type:
T/T or Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or Western Union
Product Description
Product Description
  • Specifications:
    • Standard cabinet
    • Size (W x H): 960 x 960mm
    • Resolution: 96 x 96 pixel dots
    • Module quantity: 36 pieces
    • Frame material: black powder coated steel
    • Weight: 55kg
  • Screen parameters:
    • Resolution: 10,000 dots/m²
    • Brightness: 8,000 nits
    • Brightness adjustment: manually or automatically
    • Driving method constant current: 1/4A
    • Viewing angle:
      • Horizontal: 110°
      • Vertical: 60°
    • Optimum viewing distance: 5 to 200m
    • Refreshing frequency: 1500Hz (adjustable by software)
    • Input voltage: 220V AC/50Hz or 110V AC/60Hz
    • Power consumption maximum: 1,200W/m²
    • Average: 400 to 800W/m²
    • Defects rate: d0.00001
    • MTBF: >5,000 hours
    • Lifespan: e100,000 hours
    • Protection grade: IP65
    • Operating temperature: -40 to +60°C
    • Operating humidity: 10 to 95% RH
    • Operating system: Microsoft's Windows 98/Me/2000/NT/XP
  • Standard cabinet
  • Size (W x H): 960 x 960mm
  • Resolution: 96 x 96 pixel dots
  • Module quantity: 36 pieces
  • Frame material: black powder coated steel
  • Weight: 55kg
  • Resolution: 10,000 dots/m²
  • Brightness: 8,000 nits
  • Brightness adjustment: manually or automatically
  • Driving method constant current: 1/4A
  • Viewing angle:
    • Horizontal: 110°
    • Vertical: 60°
  • Optimum viewing distance: 5 to 200m
  • Refreshing frequency: 1500Hz (adjustable by software)
  • Input voltage: 220V AC/50Hz or 110V AC/60Hz
  • Power consumption maximum: 1,200W/m²
  • Average: 400 to 800W/m²
  • Defects rate: d0.00001
  • MTBF: >5,000 hours
  • Lifespan: e100,000 hours
  • Protection grade: IP65
  • Operating temperature: -40 to +60°C
  • Operating humidity: 10 to 95% RH
  • Operating system: Microsoft's Windows 98/Me/2000/NT/XP
  • Horizontal: 110°
  • Vertical: 60°
