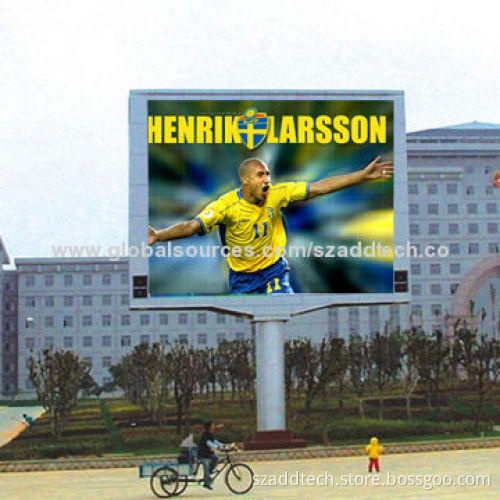

P16mm Outdoor Digital Billboard for Outdoor Entertainment Use

Get Latest Price

Payment Type:: T/T or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union

Product Description

Specifications:

LED lamps DIP346, oval
Wavelength red LEDs: 620 to 630nm
Green LEDs: 520 to 535nm
Blue LEDs: 465 to 475nm

LED module specifications:

Pixel pitch: 16mm
Pixel configuration: 1R1G1B
Module resolution: 16 x 8 pixel dots
Module size: 256 x 128mm

LED cabinet specifications (standard cabinet):

Size (W x H x D): 1,024 x 1,024 x 175mm
Resolution: 64 x 64 pixel dots
Module quantity: 32 pieces
Frame material: black powder-coated steel
Weight: 63kg

Screen parameters:

LED display screen resolution: 3,906 dots/m²
LED display screen brightness: 9500 nits
Brightness adjustment manually or automatically
Driving method constant current/static
View angle:
- Horizontal: 120°
- Vertical: 60°
Optimum viewing distance: 15 to 300m
Refreshing frequency: 1500Hz (adjustable by software)
Input voltage: 220/50 or 110V AC/60Hz
Power consumption maximum: 1,500W/m²
Average: 500 to 1,000W/m²
Defects rate: ≤0.00001
MTBF: greater than 5,000 hours
Lifespan: ≥100,000 hours
Protection grade: IP65
Operating temperature: -40 to +60°C
Operating humidity: 10 to 95% RH
Operating system: Microsoft's Windows 98/Me/2000/NT/XP

LED lamps DIP346, oval

Wavelength red LEDs: 620 to 630nm

Green LEDs: 520 to 535nm

Blue LEDs: 465 to 475nm

Pixel pitch: 16mm

Pixel configuration: 1R1G1B

Module resolution: 16 x 8 pixel dots

Module size: 256 x 128mm

Size (W x H x D): 1,024 x 1,024 x 175mm

Resolution: 64 x 64 pixel dots

Module quantity: 32 pieces

Frame material: black powder-coated steel

Weight: 63kg

LED display screen resolution: 3,906 dots/m²

LED display screen brightness: 9500 nits

Brightness adjustment manually or automatically

Driving method constant current/static

View angle:

Horizontal: 120°
Vertical: 60°

Optimum viewing distance: 15 to 300m

Refreshing frequency: 1500Hz (adjustable by software)

Input voltage: 220/50 or 110V AC/60Hz

Power consumption maximum: 1,500W/m²

Average: 500 to 1,000W/m²

Defects rate: ≤0.00001

MTBF: greater than 5,000 hours

Lifespan: ≥100,000 hours

Protection grade: IP65

Operating temperature: -40 to +60°C

Operating humidity: 10 to 95% RH

Operating system: Microsoft's Windows 98/Me/2000/NT/XP

Horizontal: 120°

Vertical: 60°
