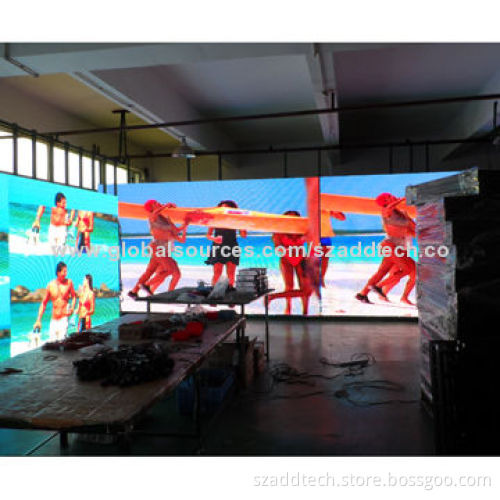

P5mm LED Billboard with 640 x 640mm Cabinet
  • P5mm LED Billboard with 640 x 640mm Cabinet
P5mm LED Billboard with 640 x 640mm Cabinet

P5mm LED Billboard with 640 x 640mm Cabinet

Get Latest Price
Payment Type:
T/T or Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or Western Union
Product Description
Product Description
  • LED cabinet specifications (standard):
    • Size (W x H): 640 x 640mm
    • Resolution: 128 x 128 pixel dots
    • Module quantity: 16pcs
    • Frame material: black powder-coated steel (aluminum for option)
    • Weight: 18kg
  • LED screen parameters:
    • Resolution: 40,000 dots/m²
    • Brightness: 2000 nits
    • Brightness: adjusted manually by software
    • Driving method: constant current 1/16
    • Viewing angle:
      • Horizontal: 120°
      • Vertical: 120°
    • Optimum viewing distance: >4 meters
    • Refreshing frequency: 1000Hz
    • Grayscale: 4096 grades
    • Displaying colors: 69 billion
    • Input voltage full range: 110 to 240V AC, 50/60Hz
    • Power consumption:
      • Maximum: 1000W/m²
      • Average: 400 to 800W/m²
    • Defect rate: ≤0.00001
    • MTBF: >5000 hours
    • Lifespan: ≥100,000 hours
    • Protection grade: IP43
  • Size (W x H): 640 x 640mm
  • Resolution: 128 x 128 pixel dots
  • Module quantity: 16pcs
  • Frame material: black powder-coated steel (aluminum for option)
  • Weight: 18kg
  • Resolution: 40,000 dots/m²
  • Brightness: 2000 nits
  • Brightness: adjusted manually by software
  • Driving method: constant current 1/16
  • Viewing angle:
    • Horizontal: 120°
    • Vertical: 120°
  • Optimum viewing distance: >4 meters
  • Refreshing frequency: 1000Hz
  • Grayscale: 4096 grades
  • Displaying colors: 69 billion
  • Input voltage full range: 110 to 240V AC, 50/60Hz
  • Power consumption:
    • Maximum: 1000W/m²
    • Average: 400 to 800W/m²
  • Defect rate: ≤0.00001
  • MTBF: >5000 hours
  • Lifespan: ≥100,000 hours
  • Protection grade: IP43
  • Horizontal: 120°
  • Vertical: 120°
  • Maximum: 1000W/m²
  • Average: 400 to 800W/m²
