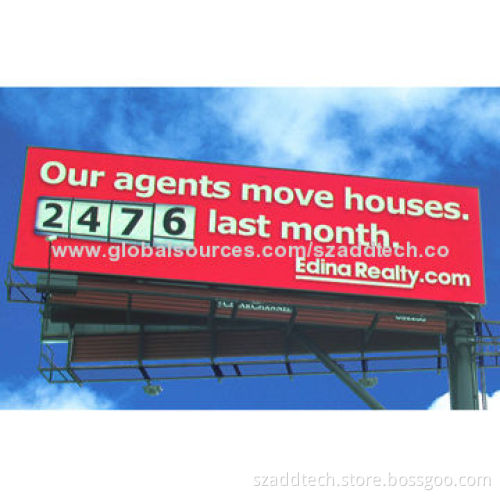

Electronic LED Billboard, Installed Near the Highway, Used for Outdoor Advertising

Get Latest Price

Payment Type:: T/T or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union

Product Description

Technical specifications:

LED lamp parameters:
- LED lamps DIP346, oval
- Wavelength:
  - Red LEDs: 620-630Nm
  - Green LEDs: 520-535Nm
  - Blue LEDs: 465-475Nm
LED module specifications:
- Pixel pitch: 10mm
- Pixel configuration: 1R1G1B
- Module resolution: 16 x 16-pixel dots
- Module size: 160mm x 160mm
LED cabinet specifications (standard LED cabinet):
- Cabinet size (WxHxD): 960mm x 960mm x 150mm
- Cabinet resolution: 96 x 96-pixel dots
- Module quantity: 36pcs
- Cabinet frame material: black powder-coated steel
- Cabinet weight: 55kg
LED billboard specifications:
- LED billboard pixel resolution: 10,000 dots/m²
- Brightness: 7000 nits
- Brightness adjustment: manually or automatically
- Driving mode: constant current static
- Viewing angle: horizontal 120°, vertical 60°
- Viewing distance: 15m to 300m
- Refreshing frequency: 300 -1000Hz (adjustable by software)
- Input voltage full range: 110-240V AC, 50Hz/60Hz
- Power consumption max.: 1000W/m², average 400-800W/m²
- Defects rate ≤0.00001
- MTBF >5000 hours
- Lifespan up to 100,000 hours (theoretically)
- Ingress protection level: IP65
- Temperature-operating: -20°C to +60°C
- Humidity-operating: 10% to 95%
- Operating system: Windows 98/Me/2000/NT/XP/Windows 7

Packaging information:

Packing material: wooden case or flight case
Packing way: each case holds 2 units LED cabinet (standard)
Remarks: the flight case is usually chosen for rental applications

LED lamp parameters:

LED lamps DIP346, oval
Wavelength:
- Red LEDs: 620-630Nm
- Green LEDs: 520-535Nm
- Blue LEDs: 465-475Nm

LED module specifications:

Pixel pitch: 10mm
Pixel configuration: 1R1G1B
Module resolution: 16 x 16-pixel dots
Module size: 160mm x 160mm

LED cabinet specifications (standard LED cabinet):

Cabinet size (WxHxD): 960mm x 960mm x 150mm
Cabinet resolution: 96 x 96-pixel dots
Module quantity: 36pcs
Cabinet frame material: black powder-coated steel
Cabinet weight: 55kg

LED billboard specifications:

LED billboard pixel resolution: 10,000 dots/m²
Brightness: 7000 nits
Brightness adjustment: manually or automatically
Driving mode: constant current static
Viewing angle: horizontal 120°, vertical 60°
Viewing distance: 15m to 300m
Refreshing frequency: 300 -1000Hz (adjustable by software)
Input voltage full range: 110-240V AC, 50Hz/60Hz
Power consumption max.: 1000W/m², average 400-800W/m²
Defects rate ≤0.00001
MTBF >5000 hours
Lifespan up to 100,000 hours (theoretically)
Ingress protection level: IP65
Temperature-operating: -20°C to +60°C
Humidity-operating: 10% to 95%
Operating system: Windows 98/Me/2000/NT/XP/Windows 7

LED lamps DIP346, oval

Wavelength:

Red LEDs: 620-630Nm
Green LEDs: 520-535Nm
Blue LEDs: 465-475Nm

Red LEDs: 620-630Nm

Green LEDs: 520-535Nm

Blue LEDs: 465-475Nm

Pixel pitch: 10mm

Pixel configuration: 1R1G1B

Module resolution: 16 x 16-pixel dots

Module size: 160mm x 160mm

Cabinet size (WxHxD): 960mm x 960mm x 150mm

Cabinet resolution: 96 x 96-pixel dots

Module quantity: 36pcs

Cabinet frame material: black powder-coated steel

Cabinet weight: 55kg

LED billboard pixel resolution: 10,000 dots/m²

Brightness: 7000 nits

Brightness adjustment: manually or automatically

Driving mode: constant current static

Viewing angle: horizontal 120°, vertical 60°

Viewing distance: 15m to 300m

Refreshing frequency: 300 -1000Hz (adjustable by software)

Input voltage full range: 110-240V AC, 50Hz/60Hz

Power consumption max.: 1000W/m², average 400-800W/m²

Defects rate ≤0.00001

MTBF >5000 hours

Lifespan up to 100,000 hours (theoretically)

Ingress protection level: IP65

Temperature-operating: -20°C to +60°C

Humidity-operating: 10% to 95%

Operating system: Windows 98/Me/2000/NT/XP/Windows 7

Packing material: wooden case or flight case

Packing way: each case holds 2 units LED cabinet (standard)

Remarks: the flight case is usually chosen for rental applications
