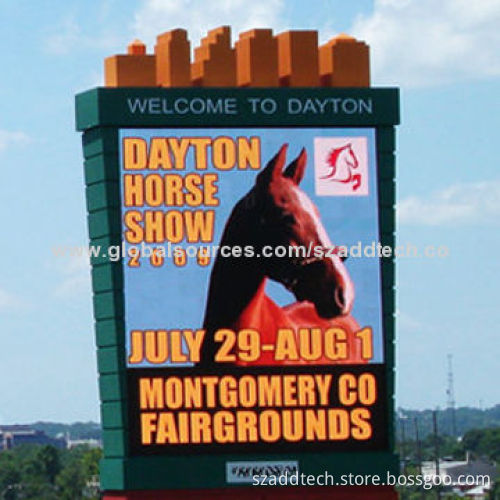

P10mm Digital Billboards, Can Show Text Messages, Graphics and Videos

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union

Product Description

LED module specifications:

LED cabinet specifications (standard LED cabinet)

LED billboard specifications:

Pixel pitch: 10mm

Pixel configuration: 1R1G1B

Module resolution: 16 x 16 pixel dots

Module size: 160 x 160mm

Cabinet size (W x H x D): 960 x 960 x 150mm

Cabinet resolution: 96 x 96 pixel dots

Module quantity: 36pcs

Cabinet frame material: black powder-coated steel

Cabinet weight: 44kg

LED billboard pixel resolution: 10,000 dots/m²

Brightness: 7000 nits

Brightness: adjustment manually or automatically

Driving mode: constant current static

Viewing angle: horizontal 120°, vertical 60°

Viewing distance: 15m to 300m

Refreshing frequency: 300-1000Hz (adjustable by software)

Input voltage full range: 110-240V AC, 50/60Hz

Power consumption:

Defects rate: ≤0.00001

MTBF: >5,000 hours

Lifespan: up to 100,000 hours (theoretically)

Ingress protection level: IP65

Maximum: 1000W/m²

Average: 400-800W/m²
