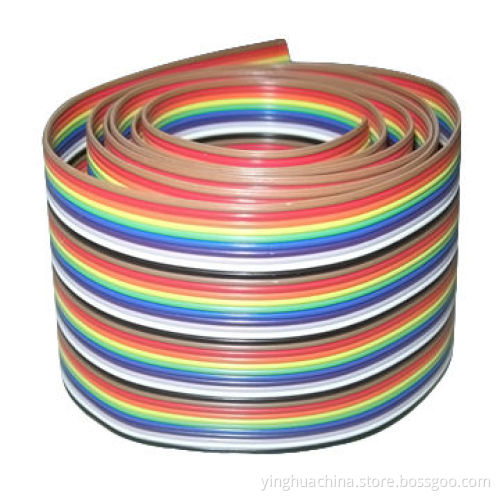

AWG26 Rainbow Flat Cable, 1.27mm Pitch, PVC 105C Insulation, 7/0.16TS Tinned Copper Conductor

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or PayPal

Product Description

Type: rainbow flat cable

Standard: UL2651

Flat cable AWG size: 26AWG

Conductor: 7/0.16TS tinned copper

Insulation: PVC 105C

Pitch: 1.27mm

Color: multicolor

Cable length: 61 and 30.5m

Contact number: 09-64

Rate voltage: 300V

UL style: 20029

CSA style: C22.2 NO.210.2

Rated temperature: 105°C

Flame test: FT1 and FT2

Number of strands in each conductor: 7/0.16mm

Lay of strands in each conductor: 0.5 inch at least

Cross section area: 253mil

Material of insulation: polyvinyl chloride (PVC) ten colors available

Extruded PVC insulated singles bonded together

Insulation thickness average: 9mil

Minimum insulation thickness: 7mil

Average tensile strength: 1500lbs/inch²

Percent of original: 70% at least

Average elongation: 200%

Percent of original: 65% at least

Cable length: 100, 250 and 500

Units: cm, feet, inch and meter

Usage: internal connection for computer, duplicator, facsimile, game, interface and many other electronic equipment
