Red and Green Dot Line Cross Light and Infrared Beam 1/3/10/100mW OEM Custom Laser Modules

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

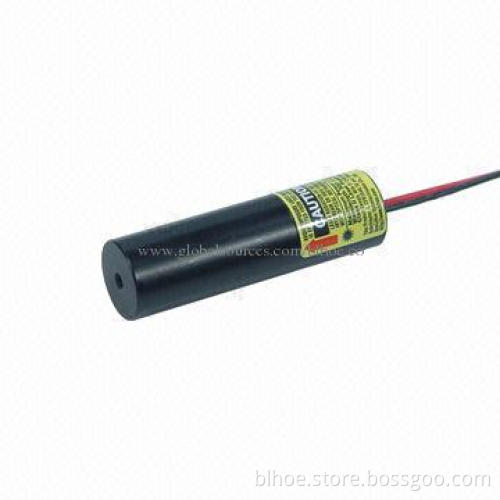

Broad heading: BLM670

Identity number: D670C1BC16-55L5

Working voltage: 5V DC ±5%

Working current: ≤30mA

Work style: continuous or pulse

Wavelength: 670 ±5nm

Laser level: class 2

Output power: 0.2 to 0.8mW (adjustable)

Working stability (25°C): ≤0.1%

Starting speed: ≤50µs

Settling time: ≤50s

Close speed: ≤1µs

Working temperature: 10 to 40°C

Storage temperature: -40 to 80°C

Continuous working lifespan: ≥10,000 hours

Laser light shape and size (at: 30m 25°C): dot 0.1 to 3mm (adjustable)

Laser focal length: 10 to 30cm (adjustable)

Beam and shell shaft angle: ≤1°

Shell material: aluminum oxide, black

Shell size: (D) 16 x 50mm

Wire specifications: AWG26, 180mm red + pole, 60mm black - pole

Use and application cases: high precision instrument applications, biological engineering protein concentration analyzer

Customized specifications are accepted
