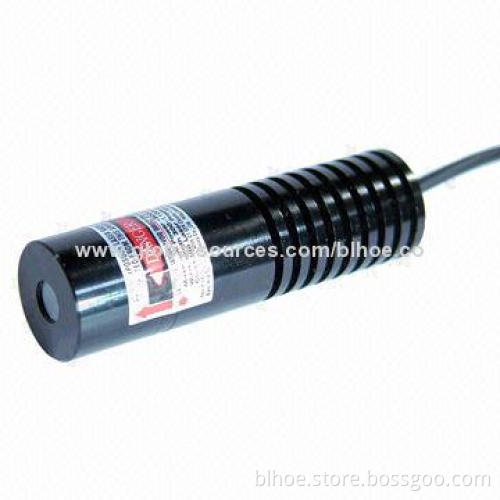

Cross Curve Infrared Laser Modules with 808nm Wavelength and 100mW Output Power

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Broad heading: BLM80100

SN: C808C100EC20-70L3

Operating voltage: DC 3V

Operating current: ≤450mA

Working: continue/pulse

Wavelength: 808nm

Output power: 100mW

Stability: ≤10%

Lifespan: ≥8000 hours

Temperature:

Beam shape: cross

Beam size: 4*400mm at 10m

Divergence: ≤2mrad

Size (D x L): 20x70/60mm

Others:

Frequency modulation: ≤100kHz
Pulse level: ≥2Vp-p
Product feature: human eye invisible infrared laser module
Reference application: infrared laser module can be in location, position and signal transmission

Working: -10 to 50°C

Storage: -40 to 80°C

Frequency modulation: ≤100kHz

Pulse level: ≥2Vp-p

Product feature: human eye invisible infrared laser module

Reference application: infrared laser module can be in location, position and signal transmission
