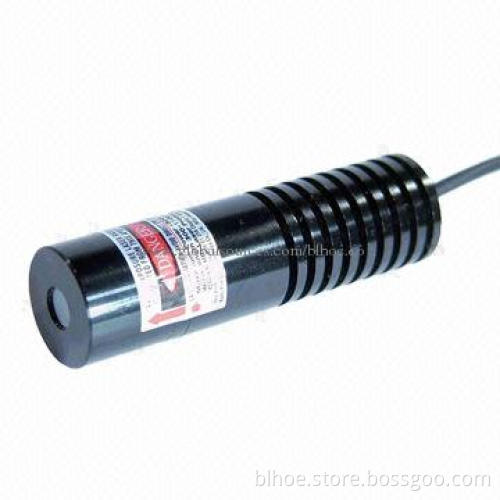

Line infrared 980nm 20mW laser modules

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Broad heading: BLM8060

SN: L 80P60 AC20-68L4.5

Operating voltage: DC4.5-6V

Operating current: ≤100mA

Working: continue/pulse

Wavelength: 980nm

Output power: 20mW (class 3b)

Stability: ≤10%

Lifespan: ≥8000 hours

Temperature:

Beam shape: line

Beam size: ≤2mm at 5m

Divergence: ≤2mrad θ//≤0.2mrad θ⊥≥120°

Modulation frequency: ≤100kHz Impulse amplitude: ≥2Vp-p

Size: (D)20x(L)60mm(70mm)

Others:

Frequency modulation: ≤100kHz

Pulse level: ≥2Vp-p

Main use: line laser, used for point direction, marking and signal transmission

Product features: Line laser, optical glass lenses, the cylindrical shell structure, flat light can be adjusted accurately, pulse and continuous work

Working: -20-50°C

Storage: -40-80°C
