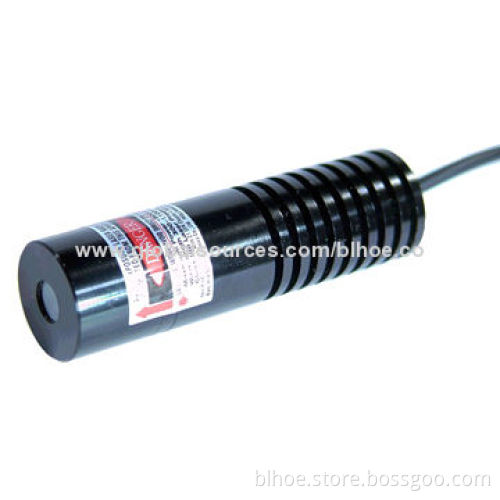

Cross infrared laser modules, 808nm wavelength, 30mW output power

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Broad heading: BLM9860

SN: C808P30AC20-70L4.5

Operating voltage: 4.5 to 6V DC

Operating current: ≤100mA

Working: continue/pulse

Wavelength: 808nm

Output power: 30mW

Stability: ≤10%

Lifespan: ≥8000 hours

Temperature:

Beam shape: cross line

Beam size: ≤2mm at 5m

Divergence: ≤2mrad θ⊥≥120°

Modulation frequency: ≤100kHz

Impulse amplitude: ≥2Vp-p

Size: (D)20x(L)70/60mm

Others:

Main usages: cross laser, used for point direction, marking and signal transmission

Features: line laser, optical glass lenses, cylindrical shell structure, flat light can be adjusted accurately, pulse and continuous work

Working: -20 to 50℃

Storage: -40 to 80℃

Frequency modulation: ≤100kHz

Pulse level: ≥2Vp-p
