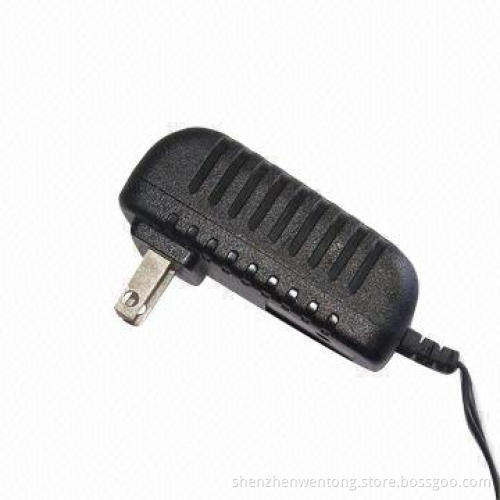

12V DC Power Supply with 100 to 240V AC at 50/60Hz Input Voltage, Measures 74 x 40 x 30mm

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Specifications:

Applications:

Input voltage: 100 to 240V AC at 50/60Hz

Output voltage: 12V/2A

Voltage tolerance: ±5%

Ripple and noise (mVp-p): less than 1%

Turn on delay:

Over-voltage protection: 120% (minimum)

Over-current protection: 120% (minimum)

Short-circuit protection: automatic recovery

Loading regulation: ±5%

Operating temperature: 0 to 40°C

Storage temperature: -20 to 85°C

Operating relative humidity range: 5 to 95% RH

Insulation: hi-pot, 3,000V AC, 60 seconds and 10mA

Leakage current: 0.25mA (maximum)

MTBF: more than 50,000 hours

With UL/cUL, PSE, GS, CE, CB, FCC, SAA, CCC, ERP and C-tickmarks

DC jack: 5.5 x 2.1 x 11mm

Dimension: 74 x 40 x 30mm

Time less than: 3 seconds

Hold up time: more than 10 minutes

Digital cameras

CD-ROM, hubs and ADSL APs

Communication terminals

Tester machines

Any portable device or machines
