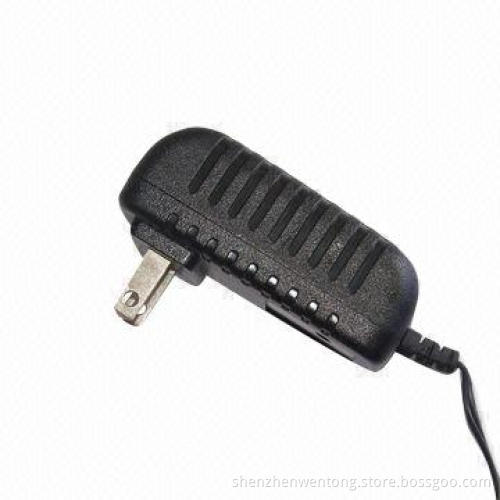

12V/1A Power Supply with 100 to 240V Range AC at 50/60Hz Input Voltage, Measures 74 x 40 x 30mm

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Specifications:

Applications:

Input voltage range: 100 to 240V AC at 50/60Hz

Output: 12V/1A

Voltage tolerance: ± 5%

Ripple and noise (mVp-p): less than 1%

Turn on delay: time less than 3 seconds

Hold up time: more than 10 minutes

Overvoltage protection: 120% (minimum)

Over current protection: 120% (minimum)

Short-circuit protection: automatic recovery

Loading regulation: ± 5%

Operating temperature range: 0 to 40°C

Storage temperature range: -20 to 85°C

Operating relative humidity range: 5 to 95% RH

Insulation: hi-pot, 3,000V AC, 60 seconds, 10mA

Leakage current: 0.25mA (maximum)

MTBF: more than 50,000 hours

With UL/cUL, PSE, GS, CE, CB, FCC, SAA, CCC, ERP and C-Tick marks

DC jack: 5.5 x 2.5 x 11mm/5.5 x 2.1 x 10mm

Dimensions: 74 x 40 x 30mm

Digital camera

CD-ROM, hubs and ADSL APs

Communication terminals

Tester machine

Any portable device or machine
