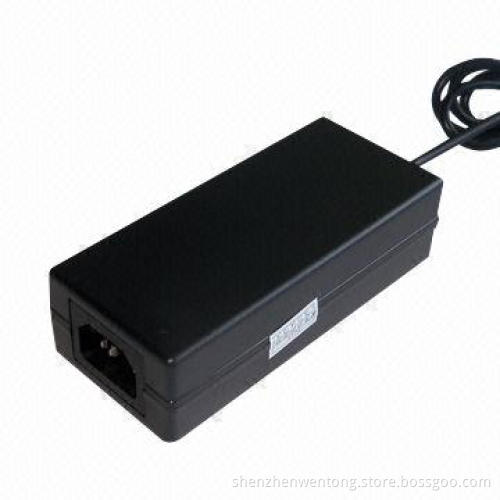

24V/2.5A AC/DC Adapter with 100 to 240V AC Input Voltages, 50/60Hz Frequencies and 1-year Warranty

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Fashionable appearance and small size

Low-ripple and noise

High-efficiency

Over-current protection, over-voltage protection andshort-current protection

Dimensions: 120 x 53 x 32mm

One year warranty

Characteristics:

Input voltages: 100 to 240V AC

Frequencies: 50 to 60Hz

Output power: 24V, 2.5A, 60W

Voltage tolerance: ±5

Ripple and noise: <1% (mVp-p)

Turn on delay time: less than 3 seconds

Hold up time: more than 10ms

Protection: short-circuit, over-current and over-voltage

Operating temperatures: 0 to 40°C, 10 to 90% RH

Storage temperatures: -20 to 85°C, 10 to 90% RH

Altitude: <3,000m

EMC: EN55022B, FCC, GB9254 and VCCI

With UL/cUL, PSE, TUV/GS, CCC, SAA and BSI marks

Insulation: hipot, 3,000V AC, 60s, 10mA

Leakage current: 0.25mA (maximum)

MTBF: MIL-HDBK-217F, full load, 25 and more than 50,000hours

Configuration: IEC320-C6, IEC320-C8 and IEC320-C14

Used for security camera, LCD monitor, LCD TV and LEDlight

Packaging: inner white box, standard carton for export
