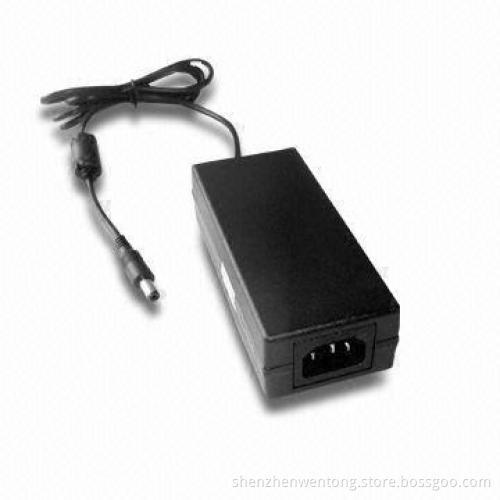

Laptop AC Adapter with Input Voltage of 100 to 240V AC/50/60Hz, Measures 96 x 43.5 x 28.5mm

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Lower ripple and noise

High-efficiency

Over-current protection, over-voltage protection and shortcurrent protection

Characteristics:

Input voltage: 100 to 240V AC, 50/60Hz
Output voltage: 12V, 4A
Voltage tolerance: ±5
Ripple and noise: (mVp-p) <1%
Turn on delay time: less than 3 seconds
Hold up time: more than 10ms
Protection: short-circuit protection, over-current protectionand over-voltage protection
Operating temperature: 0 to 40°C, 10 to 90% RH
Storage temperature: -20 to 85°C, 10 to 90% RH
Altitude: <3,000m
EMC: EN55022B, FCC, GB9254 and VCCI
Safety approval: UL/CUL, PSE, TUV/GS, CCC, SAA and BSI
Insulation: high-pot, 3,000V AC, 60 seconds, 10mA
Leakage current: 0.25mA (maximum)
MTBF: MIL-HDBK-217F, full load, 25 and more than 50,000hours
Dimension: 96 x 43.5 x 28.5mm
One year warranty
Usage: security cameras, LCD monitors, LCD TV and LEDlights
