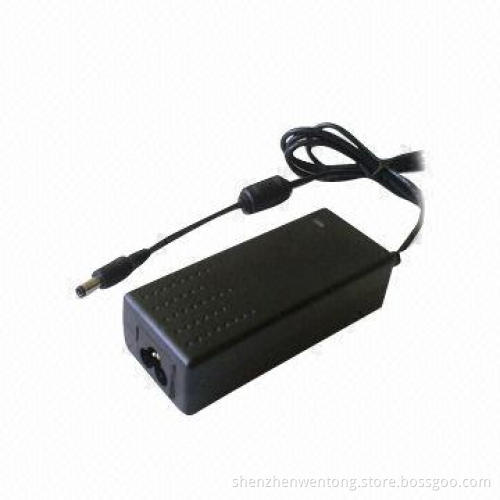

Laptop AC Adapter for Notebooks, with 19V Output Voltage, Measures 108 x 45 x 32mm

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Input voltages: 100 to 240V AC

Frequencies: 50 to 60Hz

Output power: 19V, 3A, 57W

Voltage tolerance: ± 5%

Ripple and noise:

Turn on delay time: less than 3 seconds

Hold up time: more than 10ms

Protection: short-circuit protection, over-current protection and over-voltage protection

Operating temperatures: 0 to 40°C, 10 to 90% RH

Storage temperatures: -20 to 85°C, 10 to 90% RH

Altitude:

EMC: EN55022B, FCC, GB9254 and VCCI

With UL/CUL, PSE, TUV/GS, CCC, SAA and BSI marks

Insulation: high-pot, 3,000V AC 60 seconds, 10mA

Leakage current: 0.25mA maximum

MTBF: MIL-HDBK-217F, full load, 25 and more than 50,000 hours

Packing: inner white box packing, standard carton packing for export

Dimensions: 108 x 45 x 32mm

One year warranty
