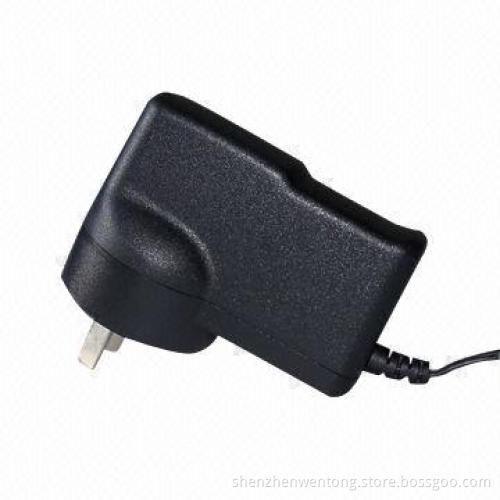

12W Power Supply with 100 to 240V AC Input Voltage, 50/60Hz Frequency and 5.5 x 2.1mm DC Jack

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Configuration: wall type with SAA plug

Output: 12V/1A

Input voltage: 100 to 240V AC

Frequency: 50/60Hz

Output power: 12W

Output voltage: 3 to 24V

Voltage tolerance: ±5%, ripple and noise (mVp-p) lessthan 1%, turn on delay time less than 3 seconds

Hold up time: more than 10m seconds

Protection:

Loading regulation: ±5%

Temperature:

Operating relative humidity range: 5 to 95% RH

Insulation resistance: 500V DC, 100MΩ (minimum)

Insulation: Hi-pot, 3,000V AC, 60 seconds 10mA

Leakage current: 0.25mA (maximum)

MTBF: more than 50,000 hours

Overvoltage: 120% (minimum)

Overcurrent: 120% (minimum)

Short-circuit: automatic recovery

Operating: 0 to 40°C

Storage: -20 to 85°C

Applications:

Digital cameras

CD-ROMs, hubs and ADSL APs

Communication terminals

Tester machines

Any portable device or machines

Certifications: UL/CUL, PSE, GS, CE, CB, FCC, SAA, CCC, ErP andC-TICK marks

DC jack: 5.5 x 2.1, 5.5 x 2.5 or 4.0 x 1.7mm

Size: 74 x 40 x 30mm
