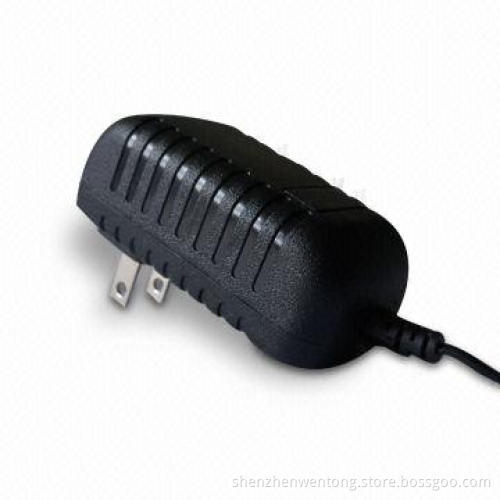

12V/1.5A CCTV Supply with OCP, OVP and Short-current Protection, Small Sized 82 x 43 x 30mm

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Features:

Specifications:

Fashionable design, small size

Low-ripple and noise, high-efficiency

Over-current, over-voltage and short-current protection

Suitable for security cameras, LCD monitors, LCD TVs and LEDlights

With 1 year warranty

Power: 18W

Input voltage: 100 to 240V AC

Frequency: 50/60Hz

Output: 12V/1.5A

Output voltage tolerance: ±5%, ripple and noise (mVp-p)<1%

Turn on delay time: less than 3 seconds

Hold up time: more than 10ms

Operating temperature: 0 to 40°C

Operating humidity: 10 to 90% RH

Storage temperature: -20 to 85°C

Storage humidity: 10 to 90% RH

Altitude: <3,000m

Insulation: hi-pot, 3,000V AC, 60 seconds, 10mA

Leakage current: 0.25mA (maximum)

MTBF: MIL-HDBK-217F, full load, 25, more than 50,000 hours

EMC: EN55022B, FCC, GB9254 and VCCI

Certificates: UL/cUL, PSE, TUV/GS, CCC, SAA and BSI

Size: 82 x 43 x 30mm
