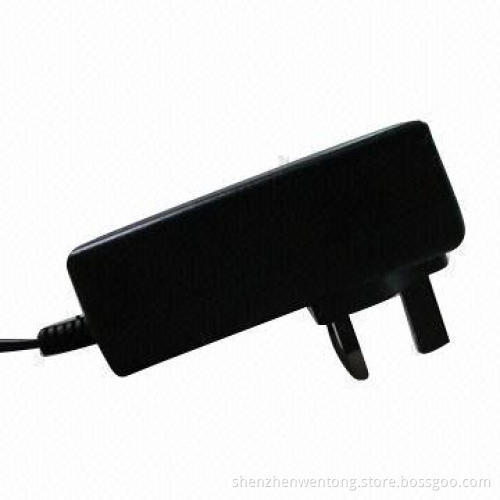

12V 4A Wall-mount Power Supply with UK Plug
  • 12V 4A Wall-mount Power Supply with UK Plug
12V 4A Wall-mount Power Supply with UK Plug

12V 4A Wall-mount Power Supply with UK Plug

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Features:
    • Fashionable design
    • Small size: 96.5 x 44.5 x 35.5mm
    • Low-ripple and noise
    • High-efficiency
    • Certifications: EMC EN55022B, FCC, GB9254 and VCCI
    • Safety certificates: UL/cUL, PSE, TUV, GS, CE, CCC, SAA
    • Warranty: 2 year
  • Specifications:
    • Input voltage: 100 to 240V AC, 50/60Hz
    • Output: 12V 4A
    • Output voltage: 5 to 24V
    • Output current: 0.5 to 3A
    • Output: voltage tolerance: ±5%, ripple and noise (mVp-p)d1%, turn on delay time less than 3 seconds, hold up time more than10-millesecond
    • Protections: short-circuit, over-current and over-voltage
    • Altitude: d3,000m
    • Insulation: hipot, 3,000V AC, 60 seconds and 10mA
    • Leakage current: 0.25mA (maximum)
    • MTBF: MIL-HDBK-217F, full load, 25, more than 50,000 hours
    • Operating temperature: up to 40°C, 10 to 90% RH
    • Storage temperature: -20 to 85°C, 10 to 90% RH
    • Size: 96.5 x 44.5 x 33.5mm
    • DC cord length: 1.2, 1.5, 1.8 and 2m
    • DC plug: 5.5 x 2.1, 5.5 x 2.5 and 3.5 x 1.35mm
  • Fashionable design
  • Small size: 96.5 x 44.5 x 35.5mm
  • Low-ripple and noise
  • High-efficiency
  • Certifications: EMC EN55022B, FCC, GB9254 and VCCI
  • Safety certificates: UL/cUL, PSE, TUV, GS, CE, CCC, SAA
  • Warranty: 2 year
  • Input voltage: 100 to 240V AC, 50/60Hz
  • Output: 12V 4A
  • Output voltage: 5 to 24V
  • Output current: 0.5 to 3A
  • Output: voltage tolerance: ±5%, ripple and noise (mVp-p)d1%, turn on delay time less than 3 seconds, hold up time more than10-millesecond
  • Protections: short-circuit, over-current and over-voltage
  • Altitude: d3,000m
  • Insulation: hipot, 3,000V AC, 60 seconds and 10mA
  • Leakage current: 0.25mA (maximum)
  • MTBF: MIL-HDBK-217F, full load, 25, more than 50,000 hours
  • Operating temperature: up to 40°C, 10 to 90% RH
  • Storage temperature: -20 to 85°C, 10 to 90% RH
  • Size: 96.5 x 44.5 x 33.5mm
  • DC cord length: 1.2, 1.5, 1.8 and 2m
  • DC plug: 5.5 x 2.1, 5.5 x 2.5 and 3.5 x 1.35mm
