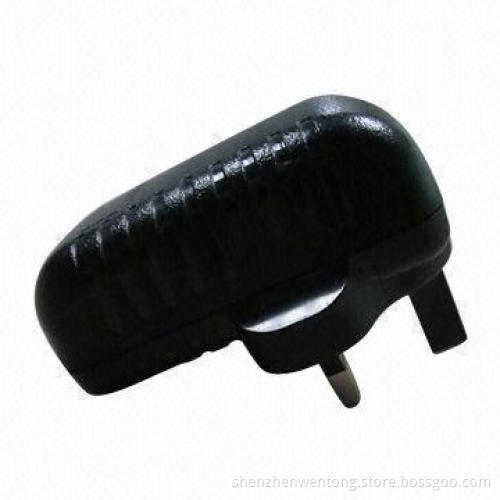

18W AC/DC Power Adapter with 12V/1.5A Output Voltage and 0.25mA Maximum Leakage Current

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Specifications:

Fashionable appearance, small size
Lower ripple and noise, high efficiency
Dimensions (L x W x H): 82 x 43 x 30mm
Input voltages: 100 to 240V AC, 50/60Hz
Output voltage: 12V, 1.5A
Power: 18W
Output: voltage tolerance ±5%, ripple and noise (mVp-p) <1%, turn on delay time less than 3S, hold up time more than 10ms
Protection: short-circuit, over-current and over-voltage protection
Operating temperatures: 0 to 40 degrees Celsius
Humidity: 10 to 90% RH
Storage temperatures: -20 to 85 degrees Celsius
Altitude: <3,000m
EMC: EN55022B, FCC, GB9254 and VCCI
Safety approvals: UL/CUL, PSE, TUV/GS, CCC, SAA and BSI
Insulation: Hi-pot, 3,000V AC, 60 seconds, 10mA
Leakage current: 0.25mA (maximum)
MTBF: MIL-HDBK-217F, full load, 25, more than 50,000 hours
Usage: security cameras, LCD monitors, LCD TVs , LED lights and STB project
