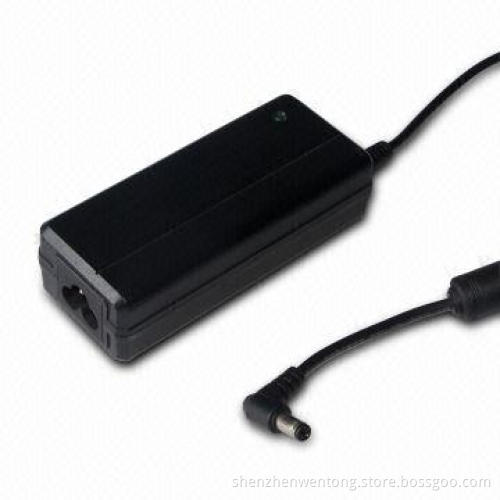

DC Power Supply with 12V/4A Output and Over-voltage/Over-current/Short-circuit Protections
  • DC Power Supply with 12V/4A Output and Over-voltage/Over-current/Short-circuit Protections
  • DC Power Supply with 12V/4A Output and Over-voltage/Over-current/Short-circuit Protections
DC Power Supply with 12V/4A Output and Over-voltage/Over-current/Short-circuit Protections
DC Power Supply with 12V/4A Output and Over-voltage/Over-current/Short-circuit Protections

DC Power Supply with 12V/4A Output and Over-voltage/Over-current/Short-circuit Protections

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Specifications:
    • Configuration: IEC320 to C6, IEC320 to C8, IEC320 to C14
    • Dimensions: 120 x 55 x 32mm
    • DC jack: 5.5 x 2.5 x 11mm
    • Warranty: 1 year
  • Applications:
    • Digital cameras
    • CD-ROMs, hubs and ADSL APs
    • Communication terminals
    • Tester machine
    • Any portable device or machine
  • Specifications:
    • Input voltages: 100 to 240V AC, 50/60Hz
    • Output: 12V/4A
    • Voltage tolerance: ±5%, ripple and noise (mVp-p) less than 1%, turn on delay time less than 3s, hold up time more than 10ms
    • Over-voltage protection: 120% (minimum)
    • Over-current protection: 120% (minimum)
    • Short-circuit protection: automatic recovery
    • Loading regulation: ±5%
    • Operating temperatures: 0 to 40°C
    • Storage temperatures: -20 to 85°C
    • Operating relative humidity range: 5 to 95% RH
    • Insulation: hipot, 3,000V AC, 60s/10mA
    • Leakage current :0.25mA (maximum)
    • MTBF: more than 50,000 hours
    • With UL/cUL, PSE, GS, CE, CB, FCC, SAA, CCC, ERPand C-Tick marks
  • Configuration: IEC320 to C6, IEC320 to C8, IEC320 to C14
  • Dimensions: 120 x 55 x 32mm
  • DC jack: 5.5 x 2.5 x 11mm
  • Warranty: 1 year
  • Digital cameras
  • CD-ROMs, hubs and ADSL APs
  • Communication terminals
  • Tester machine
  • Any portable device or machine
  • Input voltages: 100 to 240V AC, 50/60Hz
  • Output: 12V/4A
  • Voltage tolerance: ±5%, ripple and noise (mVp-p) less than 1%, turn on delay time less than 3s, hold up time more than 10ms
  • Over-voltage protection: 120% (minimum)
  • Over-current protection: 120% (minimum)
  • Short-circuit protection: automatic recovery
  • Loading regulation: ±5%
  • Operating temperatures: 0 to 40°C
  • Storage temperatures: -20 to 85°C
  • Operating relative humidity range: 5 to 95% RH
  • Insulation: hipot, 3,000V AC, 60s/10mA
  • Leakage current :0.25mA (maximum)
  • MTBF: more than 50,000 hours
  • With UL/cUL, PSE, GS, CE, CB, FCC, SAA, CCC, ERPand C-Tick marks
