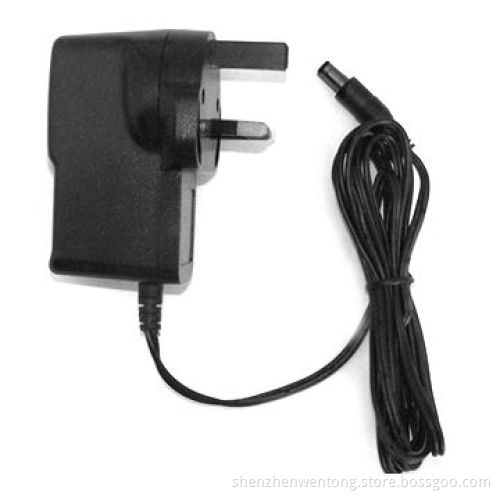

AC/DC Switching Adapter with 100 to 240V AC at 50/60Hz Input Voltage and 7V/1A Output Voltage

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Configuration: UK type

DC jack: 5.5 x 2.1 x 11mm

Dimensions: 74 x 40 x 30mm

Warranty: 1 year

Applications:

Specifications:

Digital camera

CD-ROMs, hubs and ADSL APas

Communication terminals

Tester machine

Any portable device or machine

Input voltages: 100 to 240V AC at 50/60Hz

Output: 7V/1A

Voltage tolerance: ±5%

Ripple and noise (mVp-p): less than 1%

Turn on delay: time less than: 3s

Hold up time: more than 10mS

Over-voltage protection: 120% (minimum)

Over-current protection: 120% (minimum)

Short-circuit protection: automatic recovery

Loading regulation: ±5%

Operating temperatures: 0 to 40°C

Storage temperatures: -20 to 85°C

Operating relative humidity range: 5 to 95% RH

Insulation: hi-pot, 3,000V AC, 60s, 10Ma

Leakage current: 0.25mA maximum

MTBF: more than 50,000hrs

With UL/cUL, PSE, GS, CE, CB, FCC, SAA, CCC, ERP and C-Tick marks
