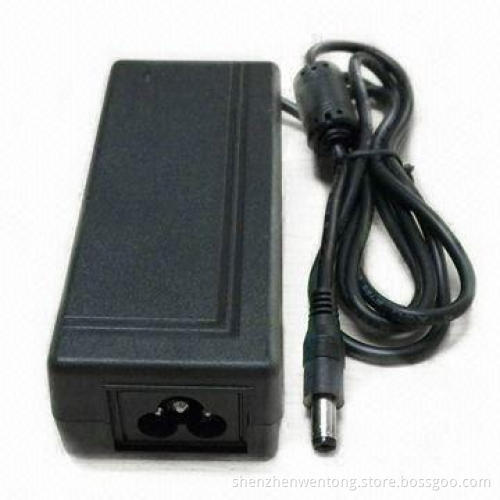

36W AC/DC Power Adapter with 100 to 240V AC Input Voltage/24V 1.5A Output, Measures 115 x 47 x 32mm
  • 36W AC/DC Power Adapter with 100 to 240V AC Input Voltage/24V 1.5A Output, Measures 115 x 47 x 32mm
  • 36W AC/DC Power Adapter with 100 to 240V AC Input Voltage/24V 1.5A Output, Measures 115 x 47 x 32mm
36W AC/DC Power Adapter with 100 to 240V AC Input Voltage/24V 1.5A Output, Measures 115 x 47 x 32mm
36W AC/DC Power Adapter with 100 to 240V AC Input Voltage/24V 1.5A Output, Measures 115 x 47 x 32mm

36W AC/DC Power Adapter with 100 to 240V AC Input Voltage/24V 1.5A Output, Measures 115 x 47 x 32mm

Get Latest Price
Payment Type:
T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T
Product Description
Product Description
  • Features:
    • Fashionable appearance, small size
    • Lower ripple and noise, high efficiency
    • Dimensions (L x W x H): 115 x 47 x 32mm
    • Warranty: one year
  • Characteristics:
    • Small size, high efficiency
    • Input: 100 to 240V AC, 50/60Hz
    • Output: 24V/1.5A
    • Power: 36W
    • Output: voltage tolerance ±5%, ripple and noise (mVp-p)<1%, turn on delay time less than 3s, hold up time more than10mins
    • Protections: short-circuit, over-current and over-voltageprotection
    • Operating temperature: 0 to 40°C
    • Operating humidity: 10 to 90% RH
    • Storage temperature: -20 to 85°C
    • Storage humidity: 10 to 90% RH
    • Altitude: <3,000m
    • EMC: EN55022B, FCC, GB9254, VCCI
    • With UL/CUL, PSE, TUV/GS, CCC, SAA and BSI marks
    • Insulation: hi-pot, 3,000V AC, 60S 10mA
    • Leakage current: 0.25mA (maximum)
    • MTBF: MIL-HDBK-217F, full load, 25, more than 50,000 hours
    • Usages: security cameras, LCD monitors, LCD TVs and LEDlights
  • Fashionable appearance, small size
  • Lower ripple and noise, high efficiency
  • Dimensions (L x W x H): 115 x 47 x 32mm
  • Warranty: one year
  • Small size, high efficiency
  • Input: 100 to 240V AC, 50/60Hz
  • Output: 24V/1.5A
  • Power: 36W
  • Output: voltage tolerance ±5%, ripple and noise (mVp-p)<1%, turn on delay time less than 3s, hold up time more than10mins
  • Protections: short-circuit, over-current and over-voltageprotection
  • Operating temperature: 0 to 40°C
  • Operating humidity: 10 to 90% RH
  • Storage temperature: -20 to 85°C
  • Storage humidity: 10 to 90% RH
  • Altitude: <3,000m
  • EMC: EN55022B, FCC, GB9254, VCCI
  • With UL/CUL, PSE, TUV/GS, CCC, SAA and BSI marks
  • Insulation: hi-pot, 3,000V AC, 60S 10mA
  • Leakage current: 0.25mA (maximum)
  • MTBF: MIL-HDBK-217F, full load, 25, more than 50,000 hours
  • Usages: security cameras, LCD monitors, LCD TVs and LEDlights
