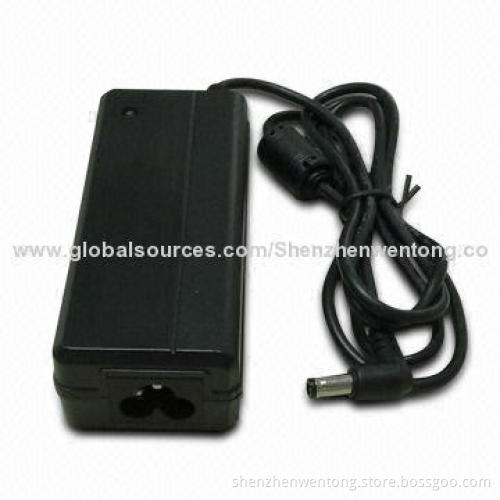

AC/DC Adapter for Notebooks with 60W Output Power, Measures 108 x 45 x 32mm

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Specifications:

Characteristics:

Fashionable appearance and small size

Low-ripple and noise

High-efficiency

Dimensions (L x W x H): 108 x 45 x 32mm

Input voltage: 100 to 240V AC

Frequency: 50/60Hz

Output power supply: 12V, 5A, 60W

Voltage tolerance: ±5%

Ripple and noise: <1% (mVp-p)

Turn on delay time: less than 3 seconds

Hold up time: more than 10ms

Protections: short-circuit, over-current, over-voltage andshort-current

Operating temperature: 0 to 40°C, 10 to 90% RH

Storage temperature: -20 to 85°C, 10 to 90% RH

Altitude: <3,000m

EMC: EN55022B, FCC, GB9254 and VCCI

Safety approvals: UL/CUL, PSE, TUV/GS, CCC, SAA and BSI

Insulation: high-pot, 3,000V AC 60 seconds, 10mA

Leakage current: 0.25mA (maximum)

MTBF: MIL-HDBK-217F, full load, 25 and more than 50,000 hours

Packing: inner white box, standard carton packing for export
