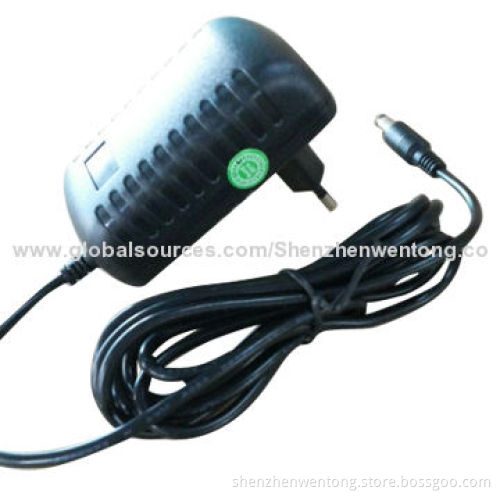

12V 1.5A AC/DC Adapter with EU Plug, Pass EMC/LVD Testing

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Specifications:

Packaging:

Fashionable appearance, small size

Lower ripple and noise, high-efficiency

Dimensions (L x W x H): 82 x 43 x 30mm

Warranty: 1 year

Input voltage: 100 to 240V AC, 50/60Hz

Output voltage: 12V, 1.5A

Power: 18W

Output voltage tolerance: ±5%

Ripple and noise: <1% (mVp-p)

Turn on delay time less than 3 seconds, hold up time more than 10ms

Protection: short-circuit, over-current and over-voltage protection

Operating temperature: 0 to 40 degrees Celsius

Humidity: 10 to 90% RH

Storage temperature: -20 to 85 degrees Celsius

Altitude: <3,000M

EMC: EN55022B, FCC, GB9254 and VCCI

Safety approvals: UL/CUL, PSE, TUV/GS, CCC, SAA and RoHS

Insulation: hi-pot, 3,000V AC 60S 10mA

Leakage current: 0.25mA (maximum)

MTBF: MIL-HDBK-217F, full load, 25, more than 50,000 hours

Usage: security cameras, LCD monitors, LCD TVs, STB and LED lights

PE bag + white box 84 pieces/carton

PE bag: 100 pieces/carton

Carton size: 37.5*35*30cm

Net weight: 9.5kg/carton

Gross weight: 11.5kg/carton
