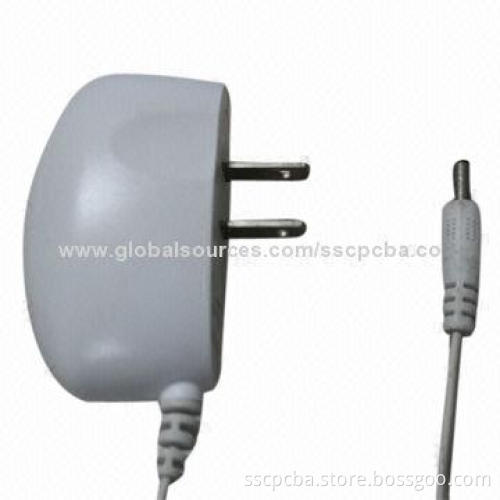

AC/AC Wall-mounted Adapter with Compact Size and Auto Startup Feature
  • AC/AC Wall-mounted Adapter with Compact Size and Auto Startup Feature
  • AC/AC Wall-mounted Adapter with Compact Size and Auto Startup Feature
AC/AC Wall-mounted Adapter with Compact Size and Auto Startup Feature
AC/AC Wall-mounted Adapter with Compact Size and Auto Startup Feature

AC/AC Wall-mounted Adapter with Compact Size and Auto Startup Feature

Get Latest Price
Payment Type:
T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T
Product Description
Product Description
  • Features:
    • Universal AC input
    • High efficiency and reliability
    • Protections: SCP, OVP and OLP
    • 100% full load burn-in test
    • MBTF: ≥30,000 hours (25°C, full-load)
  • Applications:
    • Power tools and network equipment
    • Telecommunications devices
  • Input:
    • Voltage range: 100-240V AC
    • Frequency range: 50-60Hz
    • AC current: 1.5A (maximum)
    • In-rush current (typical): 40A at 115V AC, 60A at 230V AC, cold start
    • Leakage current (primary/secondary): <0.25mA
  • Output:
    • Line regulation: ±2%
    • Load regulation: ±5%
    • Setup time:
      • <3.0s: 115V AC (input, full-load)
      • 1.5s: 230V AC (input, full-load)
    • Holdup time:
      • >10ms: 115V AC (input, full-load)
      • <20ms: 230V AC (input, full-load)
  • Dimensions: 74*41*30mm
  • Protections:
    • Short-circuit: no damage for short-circuit and auto-recovery
  • Environment:
    • Operating ambient temperature and humidity: -0 to 40°C, 5-95% RH
    • Storage temperature and humidity: -20 to 85°C, 5-95% RH
    • Safety and EMC:
      • Safety standards: UL 60950-1, GB 4943-2001 and EN 60950-1:2006
    • Withstanding voltage:
      • Input-output: 3.0kV AC, 1min (≦5mA)
      • Isolation resistance: ≧100MΩ at DC 500V
    • EMI conduction and radiation: compliant with EN 55022 (CISPR22) Class B, FCC Part 15 and GB 9254-2008
    • EMS immunity: compliant with EN 61000-4-0, 3, 4, 5, 6, 8 and 11
  • Lightweight:
    • Smart and convenient
    • Universal input voltage
    • Cooling: natural cooling
    • MTBF: 50,000 hours
    • Certifications: UL, CE, FCC, GS, TUV, SAA, CCC and PSE
  • Primary competitive advantages:
    • Brand name parts
    • Green product
    • Packaging
    • Quality approved
    • Small orders are accepted
  • Universal AC input
  • High efficiency and reliability
  • Protections: SCP, OVP and OLP
  • 100% full load burn-in test
  • MBTF: ≥30,000 hours (25°C, full-load)
  • Power tools and network equipment
  • Telecommunications devices
  • Voltage range: 100-240V AC
  • Frequency range: 50-60Hz
  • AC current: 1.5A (maximum)
  • In-rush current (typical): 40A at 115V AC, 60A at 230V AC, cold start
  • Leakage current (primary/secondary): <0.25mA
  • Line regulation: ±2%
  • Load regulation: ±5%
  • Setup time:
    • <3.0s: 115V AC (input, full-load)
    • 1.5s: 230V AC (input, full-load)
  • Holdup time:
    • >10ms: 115V AC (input, full-load)
    • <20ms: 230V AC (input, full-load)
  • <3.0s: 115V AC (input, full-load)
  • 1.5s: 230V AC (input, full-load)
  • >10ms: 115V AC (input, full-load)
  • <20ms: 230V AC (input, full-load)
  • Short-circuit: no damage for short-circuit and auto-recovery
  • Operating ambient temperature and humidity: -0 to 40°C, 5-95% RH
  • Storage temperature and humidity: -20 to 85°C, 5-95% RH
  • Safety and EMC:
    • Safety standards: UL 60950-1, GB 4943-2001 and EN 60950-1:2006
  • Withstanding voltage:
    • Input-output: 3.0kV AC, 1min (≦5mA)
    • Isolation resistance: ≧100MΩ at DC 500V
  • EMI conduction and radiation: compliant with EN 55022 (CISPR22) Class B, FCC Part 15 and GB 9254-2008
  • EMS immunity: compliant with EN 61000-4-0, 3, 4, 5, 6, 8 and 11
  • Safety standards: UL 60950-1, GB 4943-2001 and EN 60950-1:2006
  • Input-output: 3.0kV AC, 1min (≦5mA)
  • Isolation resistance: ≧100MΩ at DC 500V
  • Smart and convenient
  • Universal input voltage
  • Cooling: natural cooling
  • MTBF: 50,000 hours
  • Certifications: UL, CE, FCC, GS, TUV, SAA, CCC and PSE
  • Brand name parts
  • Green product
  • Packaging
  • Quality approved
  • Small orders are accepted
