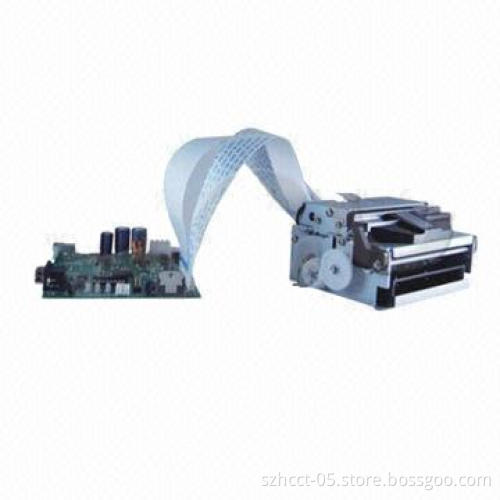

80mm Embedded Thermal Printer

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Features:

250mm/sec high print speed
Epson ESC/POS and Star commands compatible
Open structure with easy maintenance design
Two sensors in paper feeding path
90 and 180° paper feeding direction
Semi-automatic paper loading design
Two feed buttons: paper forward feeding and backwardfeeding
Paper width: 83, 80, 76, 70 and 58mm optional
Auto cutter life, 1,500,000 times, mechanism life 150km
Various installation position

Specification:

Print method: direct thermal line
Print width: 80mm maximum
Dot density: 640 dots/line
Print speed: 250mm/s
Interface: serial + USB port standard, Ethernet optional
Paper diameter: 254mm
Line space: 3.75mm (can be adjusted by sending commands)
Columns font: A-42 columns or 48 columns/font B-56 columns or64 columns/simplified/Traditional Chinese- 21 columns or 24columns
Character and barcode:
- Character size:
  - ANK font

    Font A: 12x24 Dots

    Font B: 9x17 Dots
  - Simplified Traditional Chinese: 24x24 Dots
- Code Page: PC437/Katakana/PC850/PC860/PC863/PC865/WestEurope/Greek/Hebrew/EastEurope/Iran/WPC1252/PC866/PC852/PC858/Iranll/Latvian/Arabic/PT151,1251/PC737/WPC1257/ThaiVietnam/PC864/PC1001/(Latvian)/(PC1001)/ (PT151,1251)/( WPC1257)/(PC864)/(Vietnam)/(Thai)
- Barcode type:UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)CODE39/ITF/CODABAR/CODE93/CODE128
Fonts: GB18038
Buffer data: 12K Bytes
NV flash: 64K Bytes
Power cash drawer output: 24V DC/1A
Power supply 24V DC/2A
Power adapter:

Input: 110/240V AC, 50-60Hz

Output: 24V DC/2A
Physical properties:
- Weight: 0.65kg
- Dimension: 121.4 x 88.5 x 57.5mm
Environment:
- Working environment temperature: 0-45
  Humidity: 10-80%
- Storage environment temperature: -10-60
  Humidity: 10-90%
Reliability mechanism: 150km
Easy operation and maintenance

250mm/sec high print speed

Epson ESC/POS and Star commands compatible

Open structure with easy maintenance design

Two sensors in paper feeding path

90 and 180° paper feeding direction

Semi-automatic paper loading design

Two feed buttons: paper forward feeding and backwardfeeding

Paper width: 83, 80, 76, 70 and 58mm optional

Auto cutter life, 1,500,000 times, mechanism life 150km

Various installation position

Print method: direct thermal line

Print width: 80mm maximum

Dot density: 640 dots/line

Print speed: 250mm/s

Interface: serial + USB port standard, Ethernet optional

Paper diameter: 254mm

Line space: 3.75mm (can be adjusted by sending commands)

Columns font: A-42 columns or 48 columns/font B-56 columns or64 columns/simplified/Traditional Chinese- 21 columns or 24columns

Character and barcode:

Character size:
- ANK font

  Font A: 12x24 Dots

  Font B: 9x17 Dots
- Simplified Traditional Chinese: 24x24 Dots
Code Page: PC437/Katakana/PC850/PC860/PC863/PC865/WestEurope/Greek/Hebrew/EastEurope/Iran/WPC1252/PC866/PC852/PC858/Iranll/Latvian/Arabic/PT151,1251/PC737/WPC1257/ThaiVietnam/PC864/PC1001/(Latvian)/(PC1001)/ (PT151,1251)/( WPC1257)/(PC864)/(Vietnam)/(Thai)
Barcode type:UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)CODE39/ITF/CODABAR/CODE93/CODE128

Fonts: GB18038

Buffer data: 12K Bytes

NV flash: 64K Bytes

Power cash drawer output: 24V DC/1A

Power supply 24V DC/2A

Power adapter:

Input: 110/240V AC, 50-60Hz

Output: 24V DC/2A

Physical properties:

Weight: 0.65kg
Dimension: 121.4 x 88.5 x 57.5mm

Environment:

Working environment temperature: 0-45
Humidity: 10-80%
Storage environment temperature: -10-60
Humidity: 10-90%

Reliability mechanism: 150km

Easy operation and maintenance

Character size:

ANK font

Font A: 12x24 Dots

Font B: 9x17 Dots
Simplified Traditional Chinese: 24x24 Dots

Code Page: PC437/Katakana/PC850/PC860/PC863/PC865/WestEurope/Greek/Hebrew/EastEurope/Iran/WPC1252/PC866/PC852/PC858/Iranll/Latvian/Arabic/PT151,1251/PC737/WPC1257/ThaiVietnam/PC864/PC1001/(Latvian)/(PC1001)/ (PT151,1251)/( WPC1257)/(PC864)/(Vietnam)/(Thai)

Barcode type:UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)CODE39/ITF/CODABAR/CODE93/CODE128

ANK font

Font A: 12x24 Dots

Font B: 9x17 Dots

Simplified Traditional Chinese: 24x24 Dots

Weight: 0.65kg

Dimension: 121.4 x 88.5 x 57.5mm

Working environment temperature: 0-45

Humidity: 10-80%

Storage environment temperature: -10-60

Humidity: 10-90%
